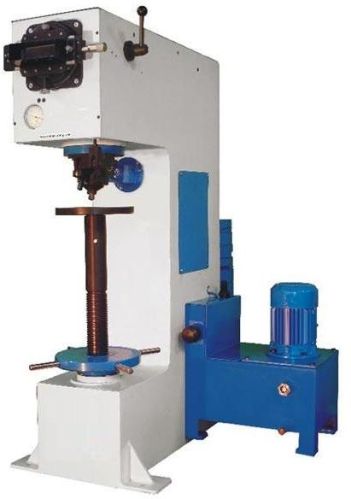

Contact SupplierDesigned for testing the Brinell Hardness of metals and alloys, the Brinell Hardness Testing Machine is of vital importance in industrial sector. We bring for the high-grade Brinell Hardness Testing Machine for clients across the globe. We are named amidst the prominent Brinell Hardness Testing Machine Manufacturers, Exporters, and Suppliers in Maharashtra (India).
Model | Unit | MTMS-B 3000 (J) | MTMS-B 3000 (H) | MTMS-B 3000 (O) |
---|---|---|---|---|
Loads | -- | 500, 750, 1000, 1500, 2000, 2500, 3000 | 500 TO 3000 IN STAGES OF 250 | 500 TO 3000 IN STAGES OF 250 |
Initial Load | KGF | NIL | 250 | NIL |
Max. Test Hight. | MM. | 254 | 410 | 380 |
Depth Of Throat | MM. | 150 | 200 | 200 |
Max.Depth Of Elevation Screw Below Base | MM. | 180 | 180 | 180 |
Size Of Base | MM. | 255X495 | 370 X 670 | 370 X 670 |
Machine Hight | MM. | 680 | 1127 | 1205 |
Net Weight | KG. | 205 | 450 | 505 |
Drive Motor | HP | NIL | 0.33 | 0.33 |
Main Supply | V/CY/PH | NIL | 400-440/50/3 | 400-440/50/3 |
Other Feature | -- | NIL | NIL | Direct Reading Optical Device |
Due to constant R&D specification are subject to change without notice. |
Model | MTMS-B-3000(J) | MTMS-B-3000(H) |
---|---|---|
Testing Table 50mm Dia. | 1 PC | NIL |
Testing Table 200 Mm Dia. | NIL | 1 PC |
Testing Table 70 Mm ∅ With 'V' Groove For Round Jobs-10 To 80 Mm Dia | 1 PC | 1 PC |
Ball Holder 10 Mm | 1 PC | 1 PC |
Test Block Hb-10/3000 | 1 PC | 1 PC |
Brinell Microscope | 1 PC | 1 PC |
Allen Spanner | 1 Set | 1 Set |
Telecopic Cover For Elevating Screw Protection | Nill | 1 Set |
Instruction Manual | 1 Book | 1 Book |
