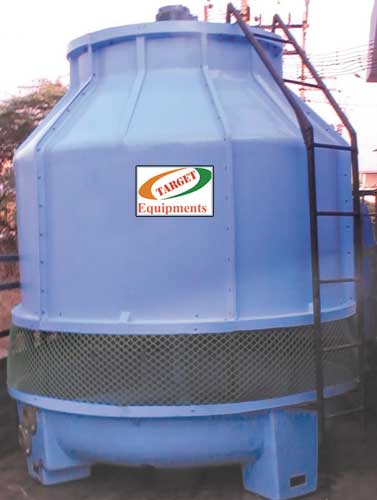

Contact SupplierWe are listed at the apex in the list of the prime Bottle Shaped Cooling Towers Exporters from India. The unique shape of the Bottle Cooling Towers ensures 100% cooling and also provides difference in temperature that varies from 4°C to 20°C. The Round Bottle Cooling Towers are ideally designed for application in different industry for cooling application and also for re-cycling the water flow from 5 M³/ Hr. to 500 M³ / Hr. Moreover, the rotary sprinkler also helps in uniform flow of water over the wet deck fills and ensure maximum cooling efficiency.
Specifications :Sl. No. | Model Variance | Motor | Dia of Fan | In / Out Size | Overall Dimension | Shipping Weight | Operating Weight | ||
L | H | P | HP / RPM | - | NB | DxH in mm | kg. | kg. | |
GCT-7.5 | √ | √ | √ | 0.5 HP / 1440 | 450(PVC) | 1½" / 1½" | 930 x 1500 | 90 | 225 |
GCT-10 | √ | √ | √ | 0.5 HP / 1440 | 450 (PVC) | 1½" / 1½" | 930 x 1690 | 90 | 340 |
GCT-15 | √ | √ | √ | 0.75 HP / 1440 | 700 (FRP) | 2" / 2" | 1180 x 1650 | 90 | 440 |
GCT-20 | √ | √ | √ | 1 HP / 950 | 750 (NL) | 2" / 2½" | 1380 x 1800 | 110 | 470 |
GCT-30 | √ | √ | √ | 1 HP / 950 | 750(NL) | 2½" / 3" | 1660 x 1860 | 180 | 550 |
GCT-40 | √ | √ | √ | 1 HP / 950 | 850 (NL) | 3" x 3" | 1780 x 1950 | 210 | 710 |
GCT-50 | √ | √ | √ | 2 HP / 950 | 900 (NL) | 3" x 3" | 1990 x 2120 | 275 | 775 |
GCT-60 | √ | √ | √ | 3 HP / 950 | 1160 (AL) | 3" x 3" | 1920 x 2720 | 340 | 810 |
GCT-80 | √ | √ | √ | 3 HP / 950 | 1160 (AL) | 4" x 4" | 2150 x 2670 | 385 | 900 |
GCT-100 | √ | √ | √ | 5 HP / 950 | 1400 (AL) | 5" x 5" | 2895 x 3050 | 625 | 1900 |
GCT-125 | √ | √ | √ | 5 HP / 950 | 1400 (AL) | 5" x 5" | 2950 x 3250 | 810 | 2310 |
GCT-150 | √ | √ | √ | 5 HP / 950 | 1600 (AL) | 5" x 5" | 3000 x 3950 | 1010 | 2700 |
GCT-200 | √ | √ | √ | 7.5 HP / 710 | 1800 (AL) | 6" x 6" | 3300 x 4230 | 1100 | 3060 |
GCT-300 | √ | √ | √ | 12.5 HP / 600 | 2400 (AL) | 8" x 8" | 4450 x 3900 | 2200 | 4070 |
