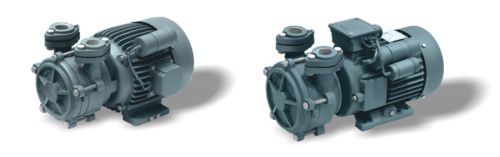

Booster pumps

Listing ID #3836583

Get Latest Price

DutyS1 (Continuous)
Speed1440 rpm
Cast IronMotor Body
Cast IronImpeller
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Suction lift up to 8 mtr.
Insulation Class B
Degree of Protection IP 54
Discharge 30 - 55 Ipm.
Duty S1 (Continuous)
Specification :
Power Range 0.5 HP. & 1.1HP
Material of Construction Pump Casing
Cast Iron Motor Body
Speed 1440 rpm
Version 220-240V, 50 Hz, A.C-1 Phase, Capacitor Start & Capacitor Run (CSCR)
Cast Iron Impeller
Head Range 12 - 32 mtrs
Bronze Shaft
Suction x delivery size 25x25 mm
E.N. 8 Sealing

OSWAL Booster Pumps are powered by a totally enclosed fan cooled, AC induction motor, complete absence of suction trouble, suitable for long hours duty. Motor stator is made of low watt loss steel laminations assembled under pressure with rigidly in the frame. Well-balanced rotor ensures vibration and noise free operations. The varnish impregnated windings made of enameled copper wire offer excellent resistance power. Shaft made out of best quality steel, precision ground of ample size, which helps to transmitting the rated Horsepower. All single-phase versions up to 1.0 HP are incorporated with Thermal Over load protector. Application of Regenerative self priming monoblock pumpset is in Hospitals, Water circulation systems, Water supply systems of Gardening, Nurseries, Domestic water supply, Multi-storey Building & Industries.
OSWAL Regenerative self priming monoblock pumpset are of good self priming capacity, dynamically balanced rotating parts, optimal design, High operating efficiency, high working pressure & designed for wide voltage fluctuations.

Application in :
• Domestic Multi storay
• Water supply in Resorts. small landscapes.
• Washing Purpose
• Civil applications in hospitals,
• Water supply in Institutes.

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Oswal Pumps Limited started in year 2000 has become now India's first unique integrated plant with world class manufacturing facility in its own kind, backed by seasoned engineers and technicians, which has resulted in as the fastest growing company in the field of submersible Pumps, Monoblock Pumps,Pressure Pumps,Sewage Pumps,Electric Motors,Submersible Winding Wires & Cables,uPVC Pipes & Fittings and Electric Panels covering Domestic, Agriculture and Industrial Range.
