BLUETOOTH SHIELD HC05

Listing ID #3187903

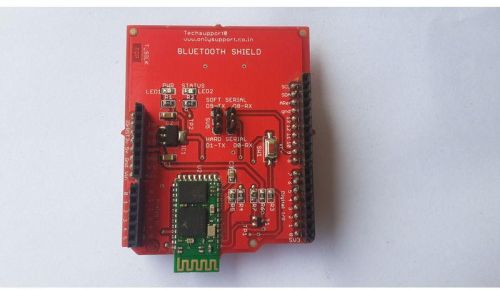

The Bluetooth Shield integrates a Serial Bluetooth module. It can be easily used with Arduino for transparent wireless serial communication. You can choose two pins from Arduino D2,D3 as Software Serial Ports to communicate with Bluetooth Shield (D2 and D3 is Software Serial Port).
Features:
• Arduino compatible
• Up to10m communication distance in house without obstacle
• UART interface (TTL) with programmable baud rate (SPP firmware installed)
• Default Baud rate: 38400, Data bits: 8, Stop bit: 1, Parity: No parity
• Default PINCODE:”0000”
• A full set of configuration commands
• On board PCB Antenna
• FCC Part 15 Certificated
Communicating between two Bluetooth Shield
This demo will show you how to communicate between two ArduinoSeeeduino through Bluetooth Shield.For the special applications, you may need to write the code by yourself. Download the Arduino Library for the shield, and unzip it into the path of Arduino Libraries. This library includes two sketch, one for Master and the other for Salve. Make sure Software Serial Library is included as well
