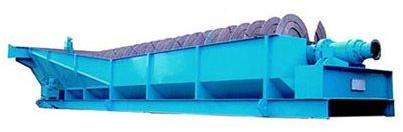

Electric Spiral Classifier, Color : Blue

Listing ID #6480134

Get Latest Price

MOQ 1 Piece
Country of OriginIndia
ColorBlue
Driven TypeElectric
ConditionNew
Supply Type Supplier
Preferred Buyer Location India only

View More Details

Product Details

Country of Origin India
Color Blue
Driven Type Electric
Condition New
Brand Name DMP
Std. Range 24", 30", 48", 66" 72"
Drive Through Bevel Gear & Pinion or Planetary Gear Box Coupled with Motor

Wet classification is the art of solid-liquid separators i.e spiral separator, separating the solid particles in a mixture of solids and liquids into fractions according to particle size or density by methods other than screening. The classifying operation is carried out in a pool of fluid pulp confined in a tank arranged to allow the coarse solids to settle out, whereupon they are removed by mechanical means. Solids that do not settle report as overflow from the pool. Upgradation of 2 to 3% is achieved improving qualities of an end product. We offer the wide range of spiral classifier, industrial spiral classifier, industrial spiral separator, solid-liquid separators and spiral separator.

Design Features Of DMP Spiral Classifier

Spiral Diameter	DMP has the wide range of Spiral diameters to establish a correct balance between overflow and Raking capacity.
Spiral Configuration	DMP Classifiers are provided with Triple start spirals giving maximum agitation and greater raking capacity. The main advantage being slow operating speed giving close separation and high raking.
Adjustable Spiral Speed	Rotational speed of spiral can be varied eighter by using a change of pulleys which is simplest of the kind or eddy current drive or by variable frequency drive.
Tank Design	DMP can provide straight tanks as well as fully flared designs depending upon the size of separation.
Lifting Device	Lifting and lowering of Spiral Assembly by means of hydraulic cylinder operated by power pack for smooth starting with the latest radial piston pump.
Flights & Wear shoes	Flight arms of Cast Steel with sectionalized Flights and Flights Arms for easy replacements and wear shoes with chromium addition for high wear resistance with assuring interchangeability.
Lower Bearing Assembly	DMP lower bearing assembly assures long trouble free operation. Designed to be grit free while in a submerged position in the pool.
Drive	Through bevel gear & pinion or planetary gear box coupled with motor.

DMP Spiral Classifier Size Range

Size Range	Throughput Cap	Raking Cap
30" x 6 to 10 mtrs. Long	80 TPH	50 TPH
48" x 6 to 10 mtrs. Long	150 TPH	80 TPH
66" x 10 to 12 mtrs. Long	250 TPH	180 TPH
72" x 10 to 12 mtrs. Long	300 TPH	200 TPH
54" x 10 to 12 mtrs. Long	200 TPH	150 TPH
