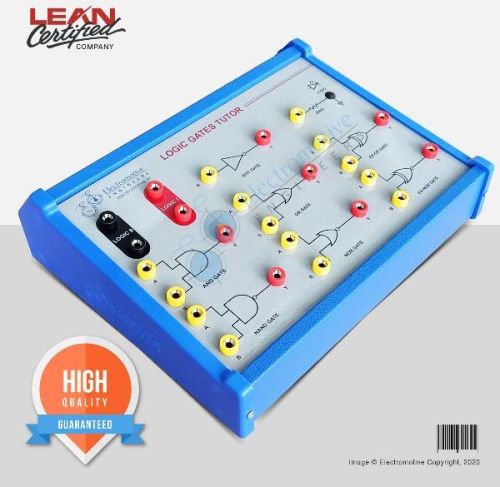

Training board is fitted with in-built regulated dc power supply of 5V, a red LED to study output logic and all the seven basic logic gates namely AND, OR, NOT, NAND, NOR, EX-OR AND EX-NOR. All arrangement is on nicely powder-coated metal panel with their connections brought out on panel with 4 mm color coded banana sockets. Truth table of two input logic gate is verified using a LED where a glowing LED signifies logic ‘1’ else logic ‘0’. Cabinet is duo combo of metal and plastic and it is powered by three core lead to provide foolproof earthing to the metal parts. Kit includes four patch cords and a working manual.

Power Supply 5V @ 5 mA
Line Regulation: 0.1%
Load Regulation: 0.1%

Gross Weight: 2.4 Kg
Dimensions (packed): 350 mm X 262 mm X 100 mm (LXBXH)
