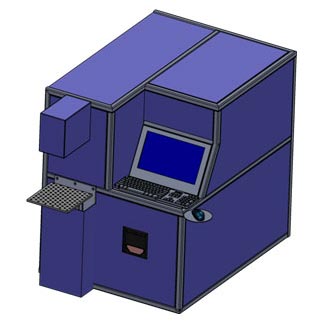

Electric 100-200kg Diode Laser Marking Machine, Production Capacity : 1000/hr, 1500hr, 2000hr/2500/hr

Listing ID #2437747

Get Latest Price

ApplicationLaser Marking
Weight100-200kg, 200-300kg, 300-400kg, 400-500kg
ColorBlue
Voltage110V, 220V, 380V, 440V
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Application Laser Marking
Weight 100-200kg, 200-300kg, 300-400kg, 400-500kg
Color Blue
Voltage 110V, 220V, 380V, 440V
Rated Power 10kw, 1kw, 3kw, 5kw, 7kw
Driven Type Electric
Production Capacity 1000/hr, 1500hr, 2000hr/2500/hr, 500/hr

We are engaged in manufacturing and exporting Diode Laser Marking Machine. Our hi-tech Diode Laser Marking Machine can efficiently deal with materials like Acrylic, Paper, Plastic, Glass, Leather, Metal, and to name a few. With its professionally designed laser resonator, the quality of beam is made superior. This resonator also expands the processing lines.

Technical Specifications

Laser Specification
Laser Type	Nd-YAG Diode Pumped
Make	Scantech
Wavelength	1060-1070 mm
Output Power	50W
Laser Life(MTBF)	20,000 Hrs.
Pilot Beam	Red Diode
Peak Power	100 KW@1KHz
Galvo Specification
Effective Marking Area	110mm x110mm or 180mm x 180 mm
Repeatability	± 3-μ
Accuracy	± 3-μ
Maximum speed - cycle time	6 Typical 0.5sec (8 ~ 10 char, 3mm ht)3μm depth.
Minimum Character height	0.3mm
Maximum Character Height	100mm
Cooling Requirements
Cooling	Water Cooling, Chiller Required.
Hardware & Software
Display	14 Inch LCD Screen.
Operating System	Windows XP,Windows 7 or Latest Version.
Marking Software	ScanMark
Z- Axis	DC Motorized.
Power Requirement
Input Voltage	230VAC, 1Ø AC, 50Hz
Power Consumption	350W
Power for chiller unit	1.5KW
Physical Appearance
Colour	Siemens Grey & VIP Blue
Safety	Laser Safety Cover Between Operator and Galvo Scanner.
Weight	Appx. 150 KG.
Job Loading	Manual
Ambient Temperature	25 ^oC

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Looking into the growing needs of the sheet metal industry scantech was established in the year 1991 for manufacturing laser marking machines. The company could identify wide variety of laser applications in diverse fields like automobile, medical, electronics, semiconductors, fabrication and it prompted scantech to introduce product line which demonstrate significant excellence over existing technologies in co2 laser applications, fiber laser applications, laser marking applications, laser welding through solid state laser like diode, nd-yag etc. The laser cutting systems show much accuracy than plasma cutting systems and other conventional methods.....
scantech has the necessary technical expertise to design & manufacture custom built laser marking as well as laser cutting and laser welding machines. These machines are getting vastly popular with sheet metal fabricators.
scantech is ably providing total solutions in the areas of….
• 2-d profile cutting for metal, plastic. Fiber composites, wood etc
• drilling as well as welding for laser punching/perforations.
• marking and engraving for metal, plastic, wood etc.
laser has proven its might in profile cutting of sheets & plates and one can join dissimilar metals with laser welding. The laser welding is in nascent stage but soon it may enter main stream of the manufacturing sector.
the quest for finding innovative technologies in laser/laser based systems; the company was awarded a patent for solid state laser head design. Scantech also received the import substitution award, which is yet another notable achievement. The company has received iso: 9000 2001 certification from moody international.
the company has well equipped r & d department at its manufacturing unit at mahape. The company has a good customer base for laser applications as well as strong support services in design, software, hardware and spares.
as strong customer focused approach and the constant quest for quality has enabled scantech to achieve success in its core business. Besides, the end users are richly benefitted by the material processing methods undertaken by scantech at its laser job shops located at vikhroli, deonar & mahape.
