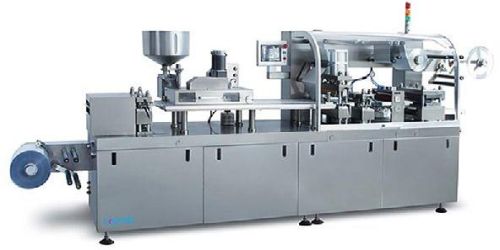

Contact SupplierThe blister pack machine will seal goods inside a plastic shell with a foil backing, keeping it fresh during storage and easy to remove by the end user.
The shape of the shell is formed from a roll of rigid PVC sheet by heated dies on a hydraulic press, at the next step the product is poured into the shells, which then go on to be covered with aluminium foil from the foil reel. Heated hydraulic presses now perform a perfect seal. The sealed shells are now cut into your desired sized pieces and ready for further packaging into boxes by a machine like our Carton Boxing Machine. The remaining trimmings from the cutting stage are neatly collected on a final reel.
MODEL | DPP-260H |
Cutting Frequency | Al/plastic:25-60times/min ;Al/Al:20-30 times/min |
Production Capacity | Al/plastic:140thousand Grains/hour; Al/Al: 7.5thousand Grains/hour |
Max Forming Depth | Al/plastic:22mm Al/Al:18mm |
Travel Range | 30-120 mm made to order 140 mm |
Total Power | 380V 50HZ 8.5KW |
PVC Rigid Sheet | 0.25-0.5×260 mm |
Dialysis Paper | 50-100g×260 mm |
PTP Aluminum Foil | 0.02-0.035 ×260 mm |
Cooling | Condensate(self)or cold circulating water(optional) |
Overall Dimensions | 4460×760×1620mm |
Weight | 1850kg |
