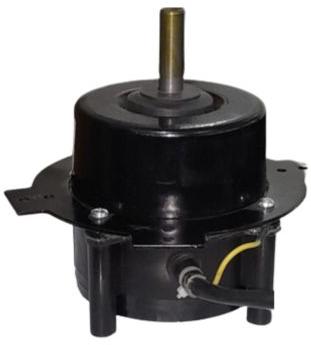

BLDC DIA 95 Motor

Listing ID #6814204

Get Latest Price

MOQ 500 Piece
RPM vs VoltageConstant RPM
Operating Voltage150V ≤ Vin ≤ 265V
Time Delay to Start≤ 5 Sec.
DelaysRemote Sensing Start Delay and Full Speed are Achieved in Factory Set Delays
Supply Type Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

RPM vs Voltage Constant RPM
Operating Voltage 150V ≤ Vin ≤ 265V
Motor Trip Voltage <160 , >270 V
Over Load Trip Current Factory Set
Delays Remote Sensing Start Delay and Full Speed are Achieved in Factory Set Delays
Humidity ≤ 95%RH@50 degree C
Operating Temp. -10 degree C to +55 degree c
Time Delay to Start ≤ 5 Sec.

Features

Switch/Remote Adjustable Speed Control
Thermal Protection
Soft Start for Reducing Inrush Current
Interchangeable use of Remote and Switches
Last Speed Saved
Last Information Saved During Power Failure for Speed, Pump and Swing
Auto Turn ON when Power Resumed

Application

Desert Cooler
Room Cooler
Personal Cooler
Blowers
General Purpose

Safety Testing

Safety Parameters
Class-B Insulation
Insulation Resistance > 10MΩ@500V DC
HVAC : 1500VAC, <5mA

Remote Features

ON/OFF Switch
Pump ON/OFF
Swing ON/OFF
LED Signals for Speeds, Pump, Swing

Protections

Auto Power down for Locked Rotor
Current Based Trip : Factory Set
Over/Under Voltage Protection
3 Trials of Auto Restart before Shut Down
HVAC : 1500VAC, <5mA

Part No. System

MICRO	Electronically Commutated	Controller 1,2,3,4	Stack Diameter in mm	Bearing Type (S-Sleeve, B-Ball Bearing)	Stack Length in mm	Rotation (A-Antilock, C-Clock)	Voltage (115-1, 230V-2, 12V-3,24V-4, 48V-5, 96V-6, 310V-9)	A-AC, D-DC	Connection Type (Terminal-T, Lead Wire-L)	Internal Code
M	EC	X	XX	X	XX	X	/ X	X	X	XXXX

Drawings & Dimensions

Download Detail File : Click Here

Electrical Performance

Controller-MCON003
MODEL NO	FAN SIZES	OPERATING VOLTAGE/ FREQ.	RPM	OUTPUT POWER	INPUT CURRENT	INPUT POWER	CONSTANT RPM (VOLTAGE RANGE)	EFF
MEC195B25C/2AL-SJ7	17.5'', 3 BLADE/ 20'' O.D.U.	230/50	900	54	0.57	74	180V - 270V	0.73
MEC195B30A/2AL-SK1	18'',3 BLADE/ 26'' O.D.U.	230/50	850	80	0.85	113	190V - 270V	0.71
MEC195B30A/2AL-SK1	20'',3 BLADE/O.D.U.	230/50	700	65	0.69	89	180V - 270V	0.73
MEC195B30A/2AL-SK2	1.5 Ton W.A.C.	230/50	920	94	1.07	138	210V - 270V	0.68
			880	80	0.9	115	200V - 270V	0.7
			840	70	0.77	99	190V - 270V	0.7
