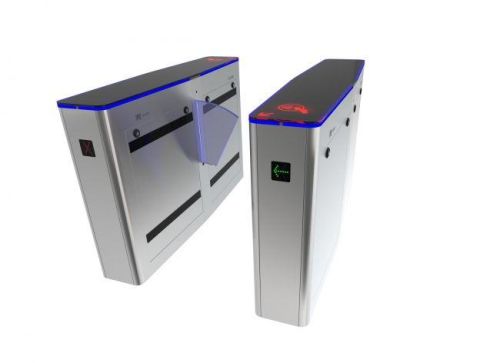

Blade Turnstile

Listing ID #278625

Get Latest Price

Power Input220 - 240 V AC
Power Consumption400 W (max) for single wing, 800 W (max) for double wings
SystemSystem It has been designed with a microprocessor control.It has bidirectional operation. It has a data output on the pass direction. This output can be either a digital output or be directly sent to a PC when controlled by a PC.
WarrantyTwo years.
Supply Type Manufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Power Input 220 - 240 V AC
Power Consumption 400 W (max) for single wing, 800 W (max) for double wings
System System It has been designed with a microprocessor control.It has bidirectional operation. It has a data output on the pass direction. This output can be either a digital output or be directly sent to a PC when controlled by a PC.
Warranty Two years.
Access Control If you wish the tourniquet to close automatically some time after opening, it has a time control adjustable to the desired time
Special Design Thanks to its special design, offers a decorative aspect as well as a soft, easy and silent access.
Main Body Dimensions (mm) 200 x 1400 x 1000 (Single Wing) 265 x 1400 x 1000 (Double Wing)
Body 1.2 mm 304 grade stainless steel, satin ï¬nishing
Obstacle Length (mm) 250 mm (Standard Wing), 425 mm (Disabled Wing)
Emergency Mode Control opportunity linking to security systems (automatic free pass mode in emergency situations, and fire alarms) is available.
Access Control Highest end Omron PLC control for granting access. Easy integration with all kind of access control equipment, configured to receive free contact at standard
Operational Temparature -20°C / + 70°C
Sensor Control 8 point (pairs) IR sensor control for N/O mode, sequential (switching) passage feature for N/C mode. The system continuously monitors the status of the corridor and gives alarm in several cases
Display Panels (Optional) Arrowed shape moving LED display provides access control of the system. When pass is authenticated, green LED lits and moves through the direction of passage. While there is someone passing through the tunstile, a red sign of XX XX lits on the
Button Control Also works with a single or double button control. In single button control, tourniquet will make its subsequent movement (closes if open, opens if closed) every time the button is pressed. In double button control, there are separate buttons for opening
Installation Fast and easy with assembly kit
Wing Height 1200 mm to 1500 mm
Cover 12 mm Plexiglas Layer for LED Stripes, Finished by 10 mm Tempered Safety Glass (Black Tainted)
Quality Standards TSEK, ISO 9001:2008
Passage Width 550 mm (Standard Passage), 900 (Disabled Passage)
