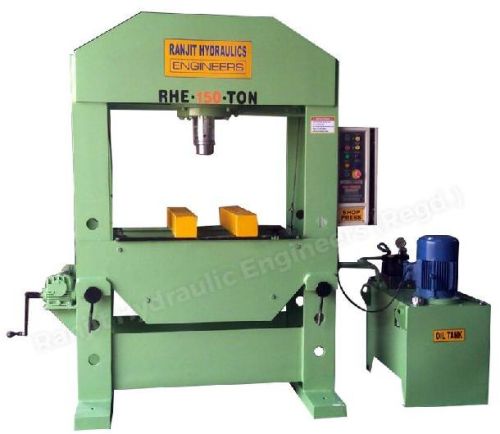

Contact SupplierOur organization is offering Hydraulic Press Machine to our clients. The sturdy construction of all presses guarantees stability and durability. The press is provided with a 2- stage hand pump. The low pressure pump is used for rapid advance of piston at pressure. The high pressure Pump is provided with a special material lining and is used for slow advance at high pressure.
The winch provided for rising and lowering the table is smooth running. During operation, the table is fastened by means of pins. The press has been all steel welded.
Standard accessories: pressure gauge, planed off V- Blocks for Straightening
Simple Operation: Press is provided with a motorized pump unit and a hand-operated control valve, the pump is driven by a belt or by flange coupled motor and has a pressure adjusting valve for adjustment of high pressure.
High-Quality Hydraulic Unit: The cylinder is made of special Steel that secures absolute pressure tightness. The seals are made of special material and guarantee long life. Piston Rod & Piston Head are carefully ground and hard chrome plated to obtain the closest accuracy in grinding.
Precision Pressing: Actual pressure may be read in tons from the precision pressure gauge that has a red zone from maximum pressure and upwards. To protect the Pressure gauge during press work, a cut-off valve is inserted near the Gauge press beds are paned off and as standard equipment 2 Planed Off Straighten Blocks are supplied.
Models | Capacity | Ram Size | Daylight | Stroke | Shut height | Table Size | Speeds (mm/Sec.) | Electric Motor | No. of | Working Ht. | Working Pr. | Weight of m/c | ||
LxW | Cylinders | |||||||||||||
- | (Tons) | (mm) | (mm) | (mm) | (mm) | (mm) | Approach | Pressing | Return | (HP.) | - | (mm) | (Bar) | (Approx) tons |
RHHP-5 | 5 | 80 | 300 | 300 | – | 350×300 | 20-25 | 44324 | 30 | 3 | 1 (D/A) | 700 | 200 | 1 |
RHHP-10 | 10 | 100 | 350 | 350 | – | 350×300 | 25-30 | 44324 | 30 | 5 | 1 No.(D/A) | 700 | 200 | 1.5 to 2 |
RHHP-15 | 15 | 120 | 400 | 400 | – | 400×300 | 25-30 | 44324 | 30-40 | 5 | 1 No.(D/A) | 700 | 200 | 1.5 to 2 |
RH HP-20 | 20 | 125 | 400 | 400 | – | 400×300 | 25 | 44324 | 30 | 5 | 1 No.(D/A) | 700 | 200 | 2 |
RH HP-25 | 25 | 125 | 400 | 400 | – | 450×300 | 25 | 44324 | 30 | 5 | 1 No.(D/A) | 700 | 200 | 2.5 |
RH HP-30 | 30 | 140 | 400 | 400 | – | 450×300 | 25 | 44324 | 30 | 5 | 1 No.(D/A) | 700 | 200 | 3 |
RH HP-50 | 50 | 200 | 400 | 450 | – | 500×500 | 70 | 44484 | 80 | 7.5 | 1+2 | 750 | 200 | 4 |
RH HP-80 | 80 | 220 | 450 | 400 | 100 | 600×500 | 70 | 44484 | 80 | 7.5 | 1+2 | 750 | 200 | 4 to 5 |
RHHP-100 | 100 | 250 | 500 | 450 | 150 | 600×600 | 80 | 44484 | 90 | 7.5 | 1+2 | 750 | 200 | 5 |
RHHP-125 | 125 | 270 | 700 | 550 | 150 | 600×600 | 80 | 44484 | 90 | 10 | 1+2 | 750 | 200 | 5 to 6 |
RHHP-150 | 150 | 300 | 700 | 550 | 150 | 650×500 | 80 | 44484 | 90 | 15 | 1+2 | 750 | 200 | 6 |
RH HP-200 | 200 | 350 | 700 | 500 | 200 | 800×600 | 80 | 44484 | 90 | 15 | 1+2 | 750 | 200 | 9 to 10 |
RH HP-250 | 250 | 400 | 800 | 550 | 250 | 800×600 | 100 | 15-20 | 110 | 20 | 1+2 | 750 | 200 | 10 |
RH HP-300 | 300 | 440 | 800 | 600 | 200 | 900×700 | 100 | 15-20 | 110 | 25 | 1+2 | 750 | 200 | 10 to 11 |
RH HP-350 | 350 | 470 | 900 | 600 | 300 | 900×700 | 120 | 15-20 | 130 | 25 | 1+2 | 750 | 200 | 12 |
RH HP-400 | 400 | 510 | 900 | 600 | 300 | 1000×800 | 120 | 15-20 | 130 | 30 | 1+2 | 750 | 200 | 12 to 13 |
RH HP-500 | 500 | 565 | 1000 | 700 | 300 | 1200×800 | 130 | 20-25 | 140 | 40 | 2+2 | 750 | 200 | 13 to 14 |
