Bitumen Sprayer

Listing ID #100970

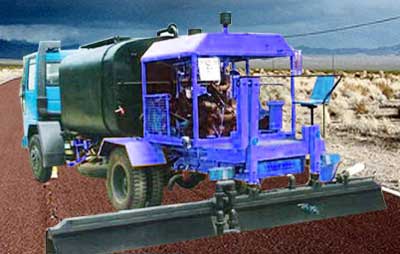

Our company offers a wide range of Bitumen Sprayer with suitable heating system and variable spray bar to operate on constant pressure system. Our Truck Mounted Bitumen Sprayer contains air-compressor, bitumen pump, auxiliary engine, tank mounting and other accessories for uniform and constant application. The spray bar can be operated from the operator platform at construction sites. We have been leading the road construction equipment and machinery market as the most pre-eminent Manufacturer and Supplier of Bitumen Sprayer. BITUMEN TANK Capacity : 4000 / 5000 / 6000 / 8000 litres Thickness of shell : 4 mm. Shape : Rectangular / Oval shape with light resin bonded rock wool insulation 50mm. thick. Filling of Tank :i) Through manhole. ii) Through self-priming by own pump. Filter : Removable screen filter. Manhole : 600 mm. dia. Temperature : Dial type thermometer of range 0° to 250° (minimum). Tank Contents Measurement : With calibrated dipstick POWER PACK Engine : 4 - Stroke twin cylinder air / water cooled diesel engine of 25 hp at 2000 RPM. Bitumen Pump : Shuttle Block Type 380 to 450 litres per minute. Compressor : Double cylinder 3 HP. Pressure 9 Kg./sq. cm. maximum. Capacity 360 litres. HEATING Type of Burner : Single high pressure oil burner for adequate heating of viscous binder, oil consumption 20 lt/hr. Tank Capacity : 50 litres. Fire Tube : 230 mm. dia. SPRAY BAR Type : Folding type fitted with pressure gauge, regulating Pre-heating of spray bar : By full circulation of preheated bitumen. Distance of nozzles : 225 mm. Cleaning : By air pressure or diesel oil. Width : Variable width from 2.4 to 4.2 metres by extension bar Width Adjustment : By closing of nozzles. Adjustment of height : Mechanical. Hand lances : 2 Nos Spraying pressure : To be adjusted between 0-6 bars. Rate of application : 0.3 to 1.0 Kg. / sq.m. Calibration chart will be provided inside the driver's cabin and at the operator's platform. OPERATION The operation of the spray bar is from operator's platform at the rear. TRUCK TATA 1613 SE Truck Chassis of WB-4225 mm. and 4x2 configuration or equivalent. The driver's cabin will be built as per R.T.O. requirement. The battery used for starting the diesel engine conforms to ISI. ISI SPECIFICATIONS All the bought-out components conform to relevant ISI specifications and are of reputed make. OPTIONAL Trolley mounted in place of Truck mounted.
