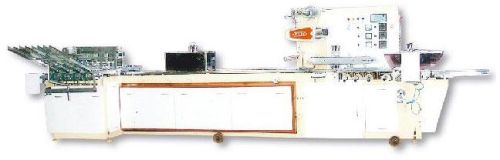

Contact SupplierWe bring forth Biscuit Packing Machine (Jumbo Pack) with advanced features. Our Biscuit Packing Machine (Jumbo Pack) is fabricated using electrical components of reputed brands. Our Biscuit Packing Machine (Jumbo Pack) offers high efficiency in packing and the packing speed depends upon the drops and rows of biscuits to be packed. For accuracy in feeding and to get high packing output with minimum wastage, our Biscuit Packing Machine (Jumbo Pack) consists of stepper / servo motor attachment. Biscuit Packing Machine (Jumbo Pack), offered by us, is also fitted with stepper / servo motor attachment for getting high efficiency. The choice of the motor to be fitted depends upon the customized usage of the Biscuit Packing Machine (Jumbo Pack).
Model number
Highlights
Model | SVM/W/FA/40 |
---|---|
Length | 18 FT 6 Inches |
Height | 6 Feet |
Width | 8 Feet |
Approx Weight | 1.5 Ton (Approx) |
Model | SVM/W/FA/40 |
---|---|
Maximum product height | Ø60mm. |
Minimum product height | Ø25mm. |
Maximum width of the product | 160mm. |
Minimum width of the product | 80mm. |
Maximum stack Length | 180mm. |
Maximum speed (Depending upon the product) | 32 Packets Per Min, for 4 Rows |
Power | 3 Phase | 440V with neutral 2 K.W. |
Main Motor | 3 Phase 1 Phase 6 Lead |
2 H.P. - 1440 RPM - 1.5 K.W. |
Frequency Drive | 230V 2H.P. 440V 2H.P. |
Input - Single phase-3 Phase Output-3Phase |
Heater | 50 Volts. 50 Volts. |
250 Watts for jaws 400 Watts, Disc Heater |
Transformer | Input Ac 440 Amp / Output Ac 50 Amp |
Model | SVM/W/FA/40 |
Maximum width of the packing material | 500 mm. |
Minimum width of the packing material | 140 mm. |
Maximum Reel Dia. | 12 Inch |
