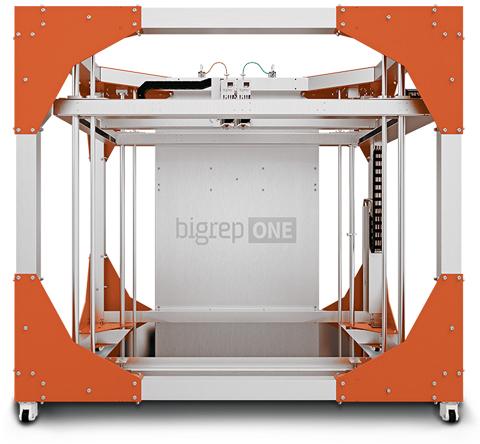

Bigrep One FDM 3D Printer

Listing ID #3336826

Get Latest Price

Supply Type Supplier
Preferred Buyer Location All over the world

For the convenience of customers, we issue an invoice to them including details of transaction. Moreover, we maintain transparency in our payment procedure and dealings. We have massive warehouse with Individual stock keeping units (SKUs). We are capable of sorting the products in an efficient way and can easily entertain bulk requirements of the customers. Advantages Large scale German design award 2016 Affordable and available to more students

View More Details

Send Enquiry

Product Details

The Factory Of The Future

Build volume	x 1005 y 1005 z 1005 (mm)
Layer resolution	400 – 900 microns / 150 – 400 microns 0.5 mm nozzle optional
Extruder	Two modular extrusion heads
Printing technology	FFF- Fused-Filament-Fabrication (FDM)
Certified materials	BigRep PLA, BigRep PRO HT, BigRep PETG Other filaments on request.
Support materials	BigRep PVA
Heating strategy	60 – 80°C
Printer weight	Approx. 460kg
Size	x 1850 y 2250 z 1725 (mm)
Power	208V - 240V, 16A, 50 / 60Hz
Safety Certifications	CE approved
GUI	Onboard with touch panel PC

Software

	BigRe PRO HT	BigRep PRO HS	BigRep PLA	BigRep PVA	BigRep PETG
	High Temperature Resistant Material	High Sped Material	Affordable and Versatile Material	Water Soluble Support Material	Durable and Impact-Resistant Material
Filament Net Weight	0.75 / 2.3 / 4.5 / 8.0 Kg	2.5 / 4.5 / 8.0 Kg	2.3 / 4.5 / 8.0 Kg	2.3 / 4.5 / 8.0 Kg	2.3 / 4.5 / 8.0 Kg
Material	BioPolymer (PRO HT)	BioPolymer (PRO HS)	Polylactic Acid (PLA)	Polyvinyl Alcohol (PVA)	PolyEthylene Terephthalate Glycol
Density	1.3 g/cm³	1.4 g/cm³	1.24 g/cm³	1.23 g/cm³	1.27 g/cm³
Diameter	1.75 / 2.85 mm	2.85 mm	2.85 mm	2.85 mm	2.85 mm
Print Temperature Guideline	195 - 205 °C	170 - 210 °C	205°C	190°C	205 - 220 °C
Heating Bed	55 - 60°C	0 – 60 °C	60°C	60°C	80°C
VST (ISO 306 VST A 120)	115°C	-	60°C	60°C	70°C
Heat Distortion Temperature (ISO 75)	-	48 °C	-	-	-
Tensile Strenght (ISO 527)	44 MPa	43 MPa	53 MPa	78 MPa	50 MPa
Impact Strenght (ISO 179)	216 KJ/m²	59 KJ/m2	7.5 KJ/m²	1.6 KJ/m²	7.2 KJ/m²
Flexural Modulus (ISO 178)	2600 MPa	3500 MPa	3800 MPa	3860 MPa	2145 MPa
