Description:

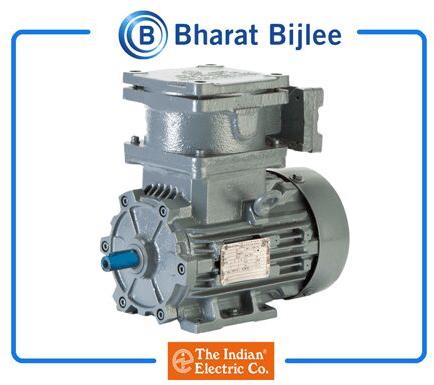

We The Indian Electric Company are the Authorised Dealer of Bharat Bijlee Flame Proof Motors having range from 0.37 KW to 200 KW & 0.5 HP to 270 HP. This motors are 3 phase with 415 volt & Frequency of 50 Hz. Bharat Bijlee Flame Proof Motorsare available in 3000 RPM, 1500 RPM, 1000 RPM and 750 RPM with respect to and 2 Pole, 4 Pole, 6 Pole & 8 Pole with cast iron body. This motors are compatible with Gas group IIA & IIB. Available Frame sizes are from 80 to 315 frame. Mounting options are B3 (Foot Mounting) B5 (Flange Mounting), B35 (Foot cum Flange Mounting) available with Terminal Box Position at Top Side.Bharat Bijlee Flame Proof Motorsare available in insulation class F & temperature rise limited to Class B with IP 55 degree of protection. Ambient temperature of Bharat Bijlee Flame Proof Motors are 20 °C to +45° C. This motors are also available with specialties i.e. VPI Treatment, Motors suitable for Gas Group I-C, II-C can be offered on request.
Also available in the following specialty

• VPI

Warranty : Motors are covered by warranty under proper use, for faulty material or workmanship for 12 months from the date of commissioning or 18 months from the date of dispatch whichever is earlier.
Application:
These series of motors are capable of withstanding pressure during an internal explosion so that such an explosion does not vent into the external atmosphere which couldalso be explosive.They are also designed to prevent the occurrence of sparks, arcs, or hot spots in service, which avoids any further risk of explosion.This motors are compatible with Gas group IIA, IIB, I-C and II-C.

• Chemical and Petrochemical Industry.
• Production of Mineral Oil and Gas.
• Coal Mines.
• Oil Mines & Rigs.
• Agro Chemical and Fertilizers.
• Solvent Extraction Plants.
• Paint and Varnish Industry.
• LPG Bottling Industries.
• Blowers/ Fans / Pumps.
• Drugs and Pharmaceuticals Industry.
• Applications – All Types of Pump, Agitators, Blower, Vacuum Pumps, Mixer, Reactors, Centrifuges, Conveyors, Crane and Hoist.
