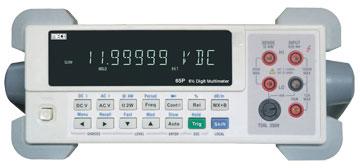

Contact Supplier6 1/2 Digit Display (11,99,999 counts)
12 Different Measurement Capabilities ; DCV / ACV, DCI / ACI, OHM2W / OHM4W, Frequency / Period, Diode Test, Continuty, dB /dBm
High brightness vacuum fluorescent display
True-rms AC voltage and current measurement, bandwidth up to 300kHz
DCV measurement accuracy up to 0.0035%, resolution up to 0.1MICROV
Max. measurement rate : 1000 meas / sec
Equal accuracy frequency measurement up to 1.1 MHz
Relative mode (REL) to eliminate residual reading
2W, 4W resistance measurement mode selectable
Built-in mX +b, %, dB, dBm etc mathematics calculation function
512 reading storage and MAX / MIN / AVER / STD statistics
Up to 30,000 readings storage (without statistics)
HI / IN / LO comparator function
USB, BPIB and RS-232 Interfaces provide easy system communication
Calibration without opening the case
10 sets of multimeter setup can be stored and loaded
Â
Features:
Â
Power Requirements Voltage 110V/220V AC +/- 15%
Frequency 50Hz/60Hz +/- 5%
Power Consumption - 20VA max.
Dimensions 265 x 105 x 360mm (approx.)
Weight 2.86.35kg (approx.)
