Bench Centres

Listing ID #4015298

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

GT’ Offers BENCH CENTRES for checking the Concentricity of the Shaft with Centre Height of 150mm Onwards. These centers are very useful in the Inspection Departments.Specifications :BENCH....

View More Details

Send Enquiry

Product Details

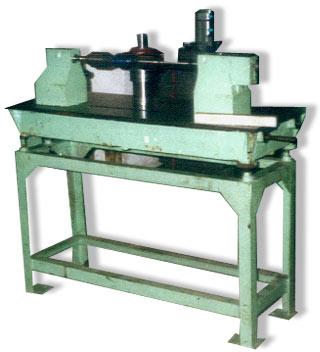

GT’ Offers BENCH CENTRES for checking the Concentricity of the Shaft with Centre Height of 150mm Onwards. These centers are very useful in the Inspection Departments. Specifications : BENCH CENTRES for checking the Concentricity of the Shaft or similar items with Centre Height of 150mm Onwards. ‘T’ Slots are provided for easy sliding Movement of Bodies (Checking Centre) by means of Tenon Base.
Both the bodies are adjustable to the required position and the extra fine setting screw facilitates Easy and Quick setting of the required distance between centers. The other feature is Locking of Retractable sleeve at the time of Inspection. Bench Centre can be placed on M.S. Fabricated Stand with Levelling Screws and the Inspection work can be carried out easily. Clamping of the bodies in position is positive And alignment is maintained by means of tenons along the ‘T’ Slots placed in front. The Rear ‘T’ Slot is meant for holding attachment and fixtures and its optional.
We also offer Bench Centre Fitted with Chucks, These are specifically designed for users application.

Company Details

With 30 years of experience, ‘GT’ has a proven record of successfully Developing Cost Effective Processing Solutions for virtually any application Whether its Flatness, Sizing, Surface Finish that’s required. Our Design and Process Engineers Combine our supreme machine quality and process innovation in order to achieve the Highest Returns for your investment.
‘GT’offers Single Sided Flat Lapping Machines Sizes from 400mm dia to 3000mm dia. Each machine is built to suit our customer’s specific needs & application. Products associated with our Lapping Machine are Monochromatic Lamp, Optical Flats, Straight Edges, lapping and polishing plates and polishing stand. We also offer Double Sided Lapping Machines / Planetory Lapping Machines.
Speciality Machines like Metallographic Polishing Machines/Laboratory Machines, Two Disc Lapping/Polishing Machines & Optical Pitch Polishing Machines. Other Engineering Products associated with ‘GT’ are Surface Plates, Bench Centres, Angle Plates, Box Angle Plates, CNC Pallets, & Belt Grinding Equipment / Attachments.
‘No matter what type of processing technology suits your application, you can be sure that ‘GT’ will provide you with the Best Possible Product at a Best Possible Price which would work all the way without any Maintanence Problems, Our Machines are simple, easy to use and have ‘Zero maintenance Advantage’. Thereby giving you that Competitive Edge in your markets
