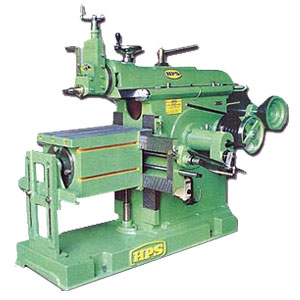

We are listed amongst the renowned organisations in this domain, engaged in offering a superior quality range of Belt Driven Shaping Machine. This machine is widely used for shaping purpose in different engineering industries and is suited for both, ferrous and non ferrous metals. In order to design this machine, supreme class raw material and latest technology are used in observance with international quality standards. Also, this Shaping Machine is precisely tested on various parameters under the supervision of our quality controllers.
| PARTICULARS | 305 mm | 12″ | 457 mm | 18″ | 630 mm | 24″ | 762 mm | 30″ | 815 mm | 32″ | 915 mm | 36″ |
| Maximum Stroke | 350 | 13.75 | 500 | 19.5 | 650 | 25.5 | 800 | 31.5 | 950 | 37.25 | 1050 | 41.25 |
| Max. distance Table to Ram | 300 | 11.75 | 385 | 15 | 460 | 18 | 510 | 20 | 550 | 21.5 | 600 | 23.5 |
| Min. distance Table to Ram | 40 | 1.5 | 40 | 1.5 | 50 | 2 | 50 | 2 | 75 | 3 | 75 | 3 |
| Length & width of Table Top | 300x 225 |
11.75x 8.75 |
460x 310 |
18x 12.25 |
610/360 | 24×4 | 760x 400 |
30x 15.75 |
910x 450 |
35.75x 17.75 |
1015x 500 |
40x 19.5 |
| Length of Cross Slide | 600 | 23.5 | 810 | 31.75 | 950 | 37.25 | 1000 | 39.25 | 1300 | 51.25 | 1375 | 54 |
| Max. Travel of Tools Slides | 130 | 5 | 160 | 6.25 | 190 | 7.5 | 200 | 7 | 210 | 8.25 | 240 | 9.25 |
| Max Swivel of Tool Head | 60oL 60o R |
60oL 60o R |
60oL 60o R |
60oL 60o R |
60oL 60o R |
60oL 60o R |
60oL 60o R |
60oL 60o R |
60oL 60o R |
60oL 0o R |
60oL 60o R |
60oL 60o R |
| Max. Size of Tool Shank | 16Lx 16R |
0.6Lx 0.6R |
25Lx 25R |
1Lx 1R |
25Lx 25R |
1Lx 1R |
25Lx 25R |
1Lx 1R |
36Lx 36R |
1.4Lx 1.4R |
40Lx 40R |
1.5Lx 1.5R |
| Ram Speed | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Table feeds in horizontal direction | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Range of Table feed in horizontal direction | 0.2 to 0.6 |
0.0078 to 0.0023 |
0.2 to 0.6 |
0.0078 to 0.0023 |
0.2 to 0.6 |
0.0078 to 0.0023 |
0.2 to 0.6 |
0.0078 to 0.0023 |
0.2 to 0.6 |
0.0078 to 0.0023 |
0.2 to 0.6 |
0.0078 to 0.0023 |
| Floor space required | 1250x 1000 |
49.25x 39.25 |
1450x 1200 |
57x 47.25 |
1720x 1300 |
67.75x 51 |
1900x 1350 |
74.75x 53 |
2100x 1550 |
82.5x 61 |
2250x 1700 |
88.5x 67 |
| Appx. Weaight of the machine(kgs) | 800 | 800 | 1200 | 1200 | 1900 | 1900 | 2200 | 2200 | 2700 | 2700 | 3500 | 3500 |
| Main Drive Motor(H.P.) | 1 | 1 | 2 | 2 | 3 | 3 | 3 | 3 | 5 | 5 | 5 | 5 |
