Bellows

Listing ID #3943786

We manufacture a wide range of Bellows in various shapes and sizes, which are long lasting and suitable to every application. A Bellow is a device used for delivering pressurized air in a controlled quantity to a controlled location. Basically, Machine Bellow is a deformable container, which contains an outlet nozzle. When the volume of the Bellows is decreased, the air escapes through the outlet. An Industrial Bellow typically also has a separate inlet and valves or flaps for ensuring that air enters only through the inlet and exits only through the outlet. These Bellow Products mainly used in the automobile, machine tool and medical industry. These are manufactured from well tested synthetic materials which have proven their mettle in actual operating conditions for over a decade. The choice of the materials is influenced by the operating conditions, application and the type of construction that include multilayer constructions.
Construction
We have two types of manufacturing methods. One is fully stitched type with every folds with PVC supports ie., P.S bellows. It is more protective where coolant and chips particles fall. The second type is pasted or glued type i.e, P.G Bellows which is mainly used for less coolant or cutting oil and for dust proof.
In both the above cases each folds or plate is stiffened by a suitable support and provides extension restraints for uniform opening and closing for ensuring longer life and is manufactured depending upon the sizes and designs
Materials
Our Bellows are manufactured from superior quality synthetic materials and are long lasting and it can withstand temperatures up to 1000 C and are resistant to all cutting oils and coolants etc.,
Mounting
Pemco Bellows are mounted and removed easily. Split type Designs ensure the same. No costly down time for maintenance. Fixing options to suit individual machine are available.
How To Specify
Construction and design of the bellows depends upon various like shapes, size, width of guideways slide or part to be covered and many other parameters.

• Width of guideway or part to be covered.(sketch or Drg. Required)
• Stroke of the machine (minimum required)
• Compressed length (maximum)
• Application – Horizontal / Vertical / Cross ways
• Fixing details
• coolant against    Yes    No
• Chips                    Yes     No

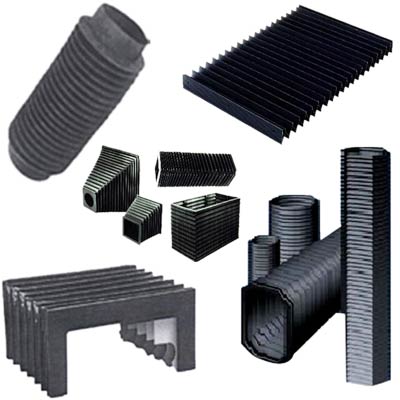

DIFFERENT SHAPES  Round,Square,Rectangular,Octagonal, Odd Shapes
OPTION DESIGN  Custom Design,Split type design,Quick Mounting Type,Extension Restainers(limit belts & scissors)
MATERIAL USED  Nylon Fabric coated with polyurethane,High Tensile Polyamide Fabric, Canvas, Leather,etc.
