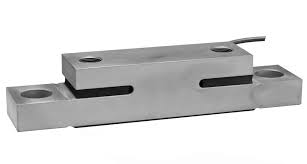

Beam load cell

Listing ID #3683708

ESMWD 100 - Double Ended Shear Beam Load cell unique bridge structure load cell with cup and steel ball mounting. Self-resetting and centering. Widely used in truck scales, railroad scales, hopper scales and various other special scales.
EAGLE Double Ended Ball and Cup Load cells surpass Its Competitors in Terms Of Resistance against Side Forces. It Is a Fact That the Major Reason behind Load cell Manufacturing Is the Horizontal Side Forces Created by the Vehicles during Brakes and Sudden Start-UPS. That is why; Scales with Column Type Load cells require Construction Absorbing Side Forces.
For medium to high capacity applications, the double ended shear beam offers a number of advantages over other designs. Units like the one shown opposite have built-in jacking bolts which can be used to support the weighing structure during installation thus allowing the live load cells to be fitted just prior to commissioning, avoiding damage.
