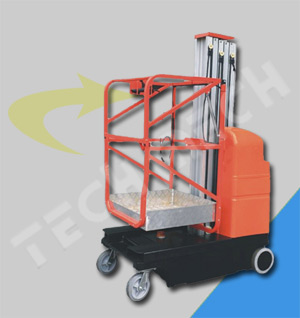

Battery Drive Aerial Maintenance Platform

Listing ID #3858102

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

This Battery Drive maintenance Platform is suitable for attending the maintenance works of lighting, overhead cranes, window cleaning etc., at high levels in workshops, ware houses or any where on goods floors or roads. All the controls for up. Down, start, stops are provided for a smooth & safe lifting & driving by joystick. All sides’ moments, brakes are provided to operator on the platform for smooth working.

These are available in two version i.e. double mast and single mast. Double mast maintenance platform can lift 2 persons up to 7.5 / 9.0 mtr. height and single mast can lift one person up to a height of 6.0 / 7.5 mtr. Both are stable, safe and easy in working, & smooth in driving to all directions. The operator can attend to jobs even up to 8 mtr, 9 mtr, and 11mtr, heights. These are completely safe machines and exactly suitable for working on heights.

Two load wheels each with two ball bearings and two steering drive wheels with two ball bearings each are provided. There are several vertical masts, which open while moving up and close while going down. All the controls are in the hands of operator. The wheels are wide faced for easy and safe drive on good pucca floors. The net weight is very low comparing to the work done at 8 – 11 mtr, heights, and battery drive also.

The product is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc. It is for two persons working together.
1. It is powered by DC, can move automatically, has the function of exchanging low and high speeds, can be controlled manually and requires no manual push.
2. The driving motor has the automatic braking function.
3. It can climb to a certain gradient.
4. It has the function of protection of floor pit and tilt alarm.
5. The malfunction can be diagnosed and displayed in codes. The emergent drop will be locked.
6. The electricity recharge is protected. In recharging condition, the operation is stopped.

Model		TMBDAP2.75	TMBDAP1.90
Capacity	Kgs.	200	150
Platform Lifting Height	mm	7500	9000
Working Height	mm	11000	9500
Platform Size	mm	1000x700	1000x700
Ground Clearance	mm	50	50
Wheelbase	mm	1028	1028
Drive Motors	Kw.	2x24VDC/0.04	2x24VDC/0.04
Lifting Motors	Kw.	24VDC/2kw	24VDC/2kw
Turning Radius	mm	1500	1500
Travel Speed Slowed Raised	Km/h Km/h	3-4 0.6-1	3-4 0.6-1
UP/Down Speed	Sec.	65/50	70/55
Batteries	V/Ah.	2x12V / 120Ah.	2x12V / 120Ah.
Integrated Charger	V/A	24V/12A	24V/12A
Grade ability	%	30%	30%
Max. Slope	*	3*	3*
Drive Wheel	mm	250x80	250x80
Rear Wheel	mm	200	200
Overall Length	mm	1500	1500
Overall Width	mm	1000	1000
Overall Height	mm	2080	2080
Net weight (Approx)	Kgs.	1100	1250

Model		TMBDAP 1.60	TMBDAP 1.75
Capacity (One Person)	Kg.	150	125
Lifting Height	Max.	6000	7500
Working Height	mm	8000	9500
Ground Clearance	Mm	50	50
Platform Size	mm	780 x 700	780 x 700
Drive Speed (Platform Stowed)	Max.	4 km/hr	4 km/hr
Drive Speed (Platform Elevated)	Max.	1.1 km/ hr	1.1 km/ hr
Turning Radius	mm.	1360	1360
Caster Size	mm.	200	200
Driving wheel size	mm.	230 X 80	230 X 80
Lifting Motor	V/kw	24 / 2	24 / 2
Aneroid Battery	V/ah	2 x 12 / 100	2 x 12 / 120
Charger	V/a	24 / 12	24 / 12
Pothole Protection Systems		Auto mechanism	Auto mechanism
Overall Length	mm.	1360	1360
Overall Width	mm.	790	790
Overall Height	mm.	1980	1980
Net Weight (approx)	Kg.	850	880
