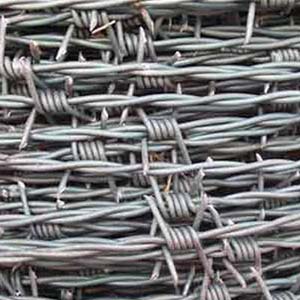

Barbed Wires

Listing ID #63970

We offer Barbed Wires.
barbed wires are an excellent product manufactured by us and exported around the world for many establishments. barbed wires, made by us, are designed to withstand any natural or man-made intrusions. we manufacture these wires as per the customizations needed by the clients. we are in much demand when it comes to barbed wires and have a list of satisfied clientele who trust us to maximize their security by this product.
types :
type a ( iowa type') : the barbs have four points and are formed by twisting two point wires each two turns, tightly around both line wires making altogether four complete turnstype b (glidden type) : the barbs have four points and are formed by twisting two point wires, each two turns, tightly around one line wire making altogether four complete turns
specification :
material : galvanized mild steel wire (standard- for general engineering purposes)
manufacturing process : barbed wire is formed by twisting together two line wires, one or both containing the barbs. the barbs are finished in such a way that the four points are set and located or locked as far as possible at right angles to each other. length of the barbs is as per industrial standards. the points are sharp and are cut at an angle smaller than or equal to 35° to the axis of the wire forming the barb.
galvanizing and chrome plating : the barbed wire is galvanized and the galvanization is according to the industrial standards for galvanized coatings on round steel wires.
flawless construction : the line and point wires are circular in section, free from scales and other defects and are uniformly galvanized. the line wire is in continuous length and does not contain any welds other than those in the rod before it is drawn. the distance between two successive splices is customized as per client’s need.
our barbed wires are known for :
superior quality raw material usedrobust constructionhard wearinganti-rust property
application areas :
industriesgovernment and private establishmentspenitentiary centersstate and international bordersrailway tracks
specifications :
diameter of wiremass of completed barbed wiredistance between two bardslays between 2 consecutive bardsline wirepoint wire----non mmtol mmnom mmtol mmmax g/mmin g/mmm-2.50+/-0.082.50+/-0.0815513675+/-122 to 72.50+/-0.082.50+/-0.08120108150+/-122 to 72.50+/-0.082.50+/-0.0812510875+/-122 to 72.50+/-0.082.50+/-0.0810389150+/-122 to 72.24+/-0.082.00+/-0.081069775+/-122 to 72.24+/-0.082.00+/-0.088578150+/-122 to 7
