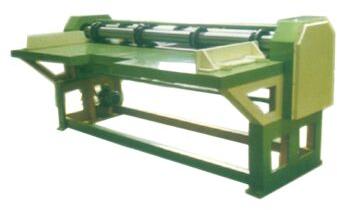

Contact SupplierFour Bar Rotary Cutting and Creasing machine is useful for creasing and cutting simultaneously. The machine is with two pairs of shafts. The front pair is with cutting dies and rear pair is with creasing die. The lower shaft of each pair can be raised or lowered by revolving side wheel. For easy feeding two guides are provided
Size | 65” | 75” | 85” | 95” | 105” | 120” |
Power Required (H.P.) | 1.5 | 2 | 2 | 3 | 3 | 5 |
Speed/Min. (Ft/Min) | 300 | 300 | 300 | 300 | 300 | 300 |
Min. Distance - 2 Dies | 3" | 3" | 3" | 3" | 3" | 3" |
Gross Weight (KG) | 1700 | 2100 | 2300 | 2500 | 2700 | 3200 |
Floor Space | 85"X52" | 98"X52" | 110"X52" | 120"X52" | 130"X52" | 150"X52" |
