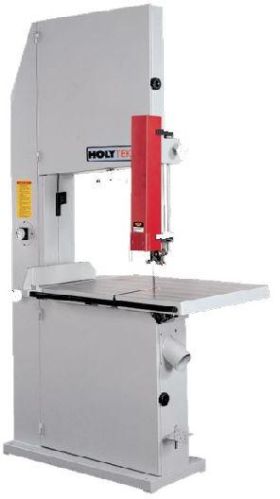

All cast-iron flywheels with rigid and heavier frame, this new BAND SAW built with latest technical concepts provides safety and dependability.
Convenient side guide adjustment is made by a micrometric adjustment knob for use with narrow blades.
Rubber Laminated saw wheel
The saw wheels on models HB 500R, 600R and 700R are laminated with rubber for accurate blade tracking, a positive grip and maximum blade durability
Model | HB 500R | HB 600R | HB 700R |
Saw wheel diameter | 500 mm. | 600 mm. | 700 mm. |
Table size | 680 x 520 mm. | 800 x 605 mm. | 1,000 x 700 mm. |
Cutting capacity ( height x width) | 300 x 475 mm. | 350 x 580 mm. | 420 x 678 mm. |
Width of wheel | 35 mm. | 35 mm. | 40 mm. |
Wheel Speed | 850 r.p.m. | 710 r.p.m. | 680 r.p.m. |
Blade length | 3,969 - 3,999 mm. | 4,410 - 4,480 mm. | 5,130 - 5,180 mm. |
Motor | 2 HP (3 HP) | 3 HP (5 HP) | 5 HP (7.5 HP) |
Packing dimensions (L x W x H ) | 1,970 x 580 x 1,010 mm. | 2,160 x 630 x 1,100 mm. | 2,380 x 650 x 1,210 mm. |
N.W. / G.W. | 280 / 350 kgs. | 315 / 450 kgs. | 450 / 600 kgs. |
