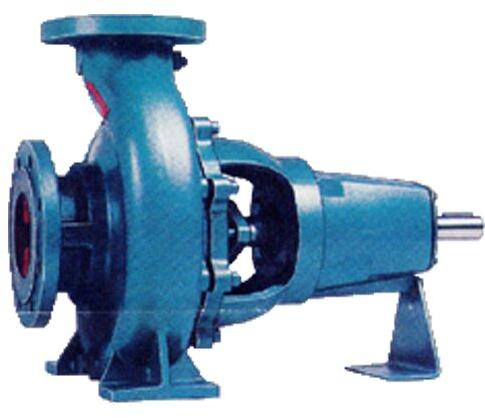

“DEVPUMPS” BP-series Centrifugal Pumps are Horizontal Single Stage Volute Casing Pump, Dimension Corresponds to DIN-24255 with end suction, Top centerline discharge design. Back-pullout design, enables to remove the rotor assembly without disturbing the pipe lines. The support feet are integrally cast with volute casing.“DEVPUMPS” BP-series Centrifugal Pumps are Horizontal Single Stage Volute Casing Pump, Dimension Corresponds to DIN-24255 with end suction, Top centerline discharge design. Back-pullout design, enables to remove the rotor assembly without disturbing the pipe lines. The support feet are integrally cast with volute casing.
The BP range compromises of 31 pump types with 3 shaft sizes which cover the entire range with maximum interchangeability. For Pumps belonging to a particular shaft size, shaft, shaft sleeve, impeller nut and bearings are interchangeable. Impeller is hydraulically balanced back vanes, and in the case of larger impeller diameter by renewable wear ring and relief holes. The pump’s Impeller design is close type.
The direction of Rotation of all pumps are clockwise direction from drive end. And also available with gland packing and mechanical seal type design.

“DEVPUMPS” BP-series Centrifugal Pumps are Horizontal Single Stage Volute Casing Pump, Dimension Corresponds to DIN-24255 with end suction, Top centerline discharge design. Back-pullout design, enables to remove the rotor assembly without disturbing the pipe lines. The support feet are integrally cast with volute casing.“DEVPUMPS” BP-series Centrifugal Pumps are Horizontal Single Stage Volute Casing Pump, Dimension Corresponds to DIN-24255 with end suction, Top centerline discharge design. Back-pullout design, enables to remove the rotor assembly without disturbing the pipe lines. The support feet are integrally cast with volute casing.
The BP range compromises of 31 pump types with 3 shaft sizes which cover the entire range with maximum interchangeability. For Pumps belonging to a particular shaft size, shaft, shaft sleeve, impeller nut and bearings are interchangeable. Impeller is hydraulically balanced back vanes, and in the case of larger impeller diameter by renewable wear ring and relief holes. The pump’s Impeller design is close type.
The direction of Rotation of all pumps are clockwise direction from drive end. And also available with gland packing and mechanical seal type design.
