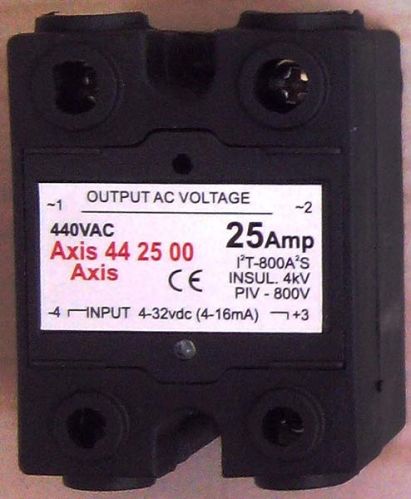

Contact SupplierWe are second to none in offering Axis 44 Series Double Phase Solid State Relays. The Solid State Relays we make available are known for their long functional life.
Details :
Ratings from 25A to 90A @ 440 VAC :
Applications :
Insulation way | Distance between the input terminal | LED Instructions | Load Current | Load voltage | Model |
---|---|---|---|---|---|
Photoelectric three terminal two-way thyristor switch | 27mm | LED | 25A-90A | 40-480VAC | AXIS 44 Series |
Main technical/Product model | AXIS 4425 00/ AXIS4450 00/ AXIS 44 90 |
Load voltage | 40-440VAC |
Max Load current | 25A, 50A, 90 A |
Isolation bet.In & out | >=2000VAC |
Isolation to case | >=2500VAC |
Control voltage | 4-32VDC |
Control current | 6-25mA |
Turn-on voltage | <=1.3VAC |
Off-state leakdge | <=0.5mA |
Off-state dv/dt | 300v/Us |
On or off time | 10mS |
Frequenty range | 47/63Hz |
Status indicator | LED |
Operating temperature | -40~80oc |
