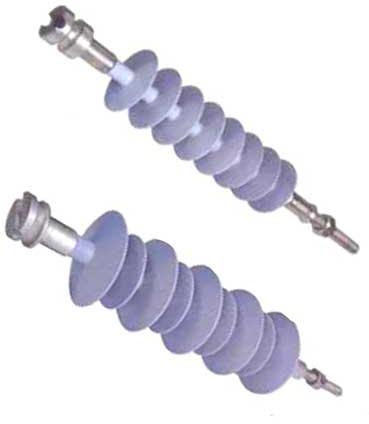

Disc 33 KV Composite Pin Insulator, for Control Panels, Industrial Use, Certification : CE Certified

Disc 33 KV Composite Pin Insulator, for Control Panels, Industrial Use, Certification : CE Certified

Listing ID #36814

Get Latest Price
  • TypeComposite Pin Insulator
  • ShapeDisc, Round
  • CertificationCE Certified
  • ApplicationControl Panels, Industrial Use
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Beimco Frp Products verified-icon
Nadiad, Kheda, Gujarat
08047025111
  • Member Since 17 Years
  • Nature of Business Retailer
  • GST No. 24ACWPM4354M1ZX

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Type Composite Pin Insulator
  • Shape Disc, Round
  • Certification CE Certified
  • Application Control Panels, Industrial Use
  • Color Available in Many Colors
  • Tensile Strength 0-25Mpa, 100-125Mpa
  • Feature Easy To Install, Electrical Porcelain
  • Warranty 1year
  • Temperature High Temperature, Low Temperature, Medium Temperature

ADVANTAGE :

  • Light Weight
  • High Mechanical Strength
  • Easy to Install
  • Vandal Proof
  • Resist tracking resulting in lower line losses
  • Reduced leakage current
  • Excellent in salt, fog and severely contaminated environment
  • No ultra violet, corona ozone degrading
  • Excellent hydrophobic
  • High pollution flash over voltage
  • Wide range of service temperature -35 to +80° C
  • Better Aesthetics


Specifications

Product Code System Voltage Specified Mechanical Load in KN Dry Arc in mm Creepage Distance in mm Dry Power Frequency Voltage with stand in KV Wet Power Frequency Voltage with stand in KV Lightning Impulse with stand in KV Visible Discharge Test
BI-33/36/PIN 33 KV 5 KN 370±5 860 137 111 248 27
BI-33/36/PIN/H.C 33 KV 5/10 KN 375±5 1175 154 135 248 27
Interested in this product? Ask for more details & Latest Price from seller
