Contact SupplierWe are one of the reliable names engaged in providing the best Female Threaded Adaptor. Made from PVC and other required materials, Female Threaded Adaptor is sturdy and durable. Weatherability, impact & abrasion resistant are the prominent attributes of our Female Threaded Adaptor. Owing to precise threads, Female Threaded Adaptor ensures excellent leakage proofing.
Threades as per BSPT/IS 554/ ISO 228

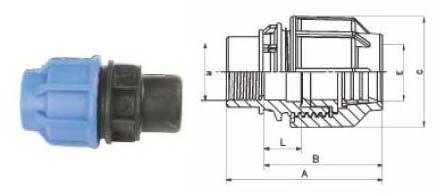

Size | Code | G | Sp | A | B | C | E | L |
---|---|---|---|---|---|---|---|---|
20mm x ½ | 2020201010 10 101 | 42 | 225 | 76 | 56 | 45 | 21 |
25 |
25mm x ¾ | 2020202010 10 101 | 72 | 140 | 85 | 58 | 53 | 27 | 20 |
32mm x 1 | 2020203010 10 101 | 104 | 85 | 95 | 65 | 65 | 34 | 26 |
40mm x 1 ¼ | 2020204010 10 101 | 268 | 40 | 114 | 84 | 82 | 44 | 26 |
50mm x 1 ½ | 2020205010 10 101 | 270 | 25 | 126 | 103 | 93 | 54 | 28 |
63mm x 2 | 2020206010 10 101 | 532 | 12 | 162 | 127 | 117 | 64 | 46 |
