Contact SupplierShree Bhagwati Pharma introduces highest grade pharmaceutical machines, designed as per GMP standard, incorporating latest concepts with A.C frequency drive for injectable liquids in sterile operation compact machine, elegant and functionally superior, that have found wide acceptance in the pharmaceutical, chemical and allied industries.

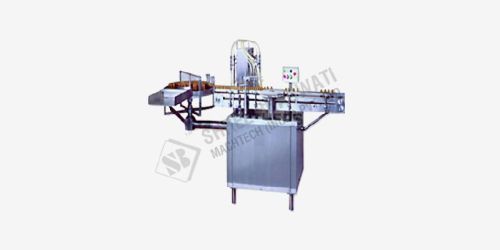

Shree Bhagwati Pharma’s compact Automatic Liquid Vial Filling Machine is in pleasing matte finished stainless steel. The basic unit consists of turntable, S.S. Stat conveyor belt, unique co. eccentric pre-gassing, filling and post-gassing S.S. 316 nozzles highly efficient and precision built S.S. 316 Syringes, non- toxic synthetic rubber tubings, easy reach compact panel and with no container, no filling system.
Â
Technical Specification of Twin Head Liquid Filling MachineÂ
Description | Model SBVFS 80 |
---|---|
Heads | 2 Heads |
Output Per Hour | 4000 Vials (Depending on the nature of liquid and its fill size or volume) |
Power Characteristics | 440 V 3 Phase 50 Hz 4 Wire System With Ac Frequency Drive |
Input (container dia. And height) | 24 mm TO 50 mm Ø / 75 mm Max. |
Fill Size | 02 ml TO 50 ml (With Help Of Extra Change Parts) |
Filling Accuracy | + 1% ON Single Dose |
Net weight | 300 Kgs. Max. |
