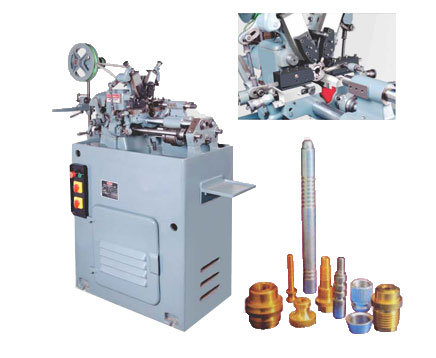

Automatic Turning Lathe

Listing ID #4359836

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Standard Accessories : • Cross Slide• Rocker Type Tool Holder front & rear,with one fine adjustment each• Limited Stop for over loading• Tail stock with quill for sleeve collet A-3• Weight....

View More Details

Send Enquiry

Product Details

Standard Accessories :
• Cross Slide
• Rocker Type Tool Holder front & rear,with one fine adjustment each
• Limited Stop for over loading
• Tail stock with quill for sleeve collet A-3
• Weight operated bar feed length 3.5m.
• Motor for main spinlde with jack shaft & V-belt
• Feed Motor
• Change Gear set (11 Nos.)
• Water Coolant Pump
• Hydraulic & Roller Blade Guide for long life accurate cutting
• Switches & motor fitted in the machine base
• Ready for connection Front & rear sheet metal splash guard
• Weight & Extra Weight
• Rope for bar feed
• Pusher rod
• Stand bar support head
• LN Key set
• Tool Tray
• Chuck open spanner
• Spindle nut's spanner
• Double end spanner 6 to 19 & 22x24
• Sq. angle box spanner 6mm
• Sq. box spanner 6mm

Extra Accessories
• Long turning attachment front & rear
• Open tool holder front & rear
• Extra long Quill
• Quill for MT2
• Step turning tool holder W-35
• Automatic electric shutter
• Silent bar feed assembly

Sr. No.	1	2	3	4
Max Spindle Capacity for Round Bars for Hexagonal Bars for Square Bars	25 mm 22 mm 18 mm	30 mm 26 mm 21 mm	42 mm 36 mm 29 mm	60 mm 52 mm 42 mm
Distance from collet to face to tail stock	240 mm	240 mm	395 mm	395 mm
Turning Length with Longitudinal Turning Attachment	70 mm	70 mm	100 mm	100 mm
Stroke of cross slide	22 mm	22 mm	43 mm	43 mm
Tail stock travel	100 mm	100 mm	165 mm	165 mm
Max. capacity of tailstock collet	13 mm	13 ram	22 mm	22 mm
Spindle Speed (12 Speed) Min. Max.	550 4000	550 4000	200 2500	160 2000
Production Rate (Approx) Min. Per Hour Max.	28 2100	28 2100	12 1245	12 1245
Power Rating of work
Spindle Motor (1400/2800 RPM) KW/HP	1.2/1.6	1.2/1.6	-	-
Spindle Motor (700/1400 RPM) KW/HP		-	2.8/3.5	2.8/3.5
Power Rating of Camshaft Motor (1400 RPM) KW/HP	0.37/0.5	0.37/0.5	-	-
Power Rating of Camshaft Motor (700/1400 RPM) KW/HP			0.75/1	0.75/1
Floor Space not including bar feed	0.48x.081 mtr	0.48x.081 mtr	0.8x1.6 mtr	0.8x1.6 mtr
Packing Case	1.8 cu. mtr.	2 cu. mtr.	3 cu. mtr.	3.6 cu. mtr.
Net Weight of Complete Machine	670 Kgs.	670 Kgs.	1250 Kgs.	1300 Kgs.
