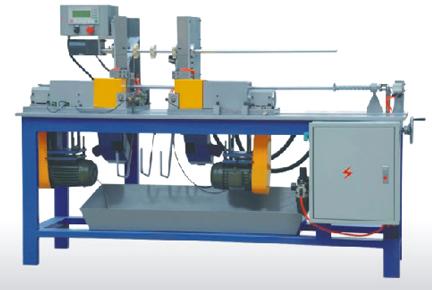

Automatic Tube Turning Machine

Listing ID #3958461

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Is used to turn the tube ends according to the preseted length. chamfer and dig the powder of tube ends automatically. Functions : 1. PLC automatically controlled, human-computer....

View More Details

Send Enquiry

Product Details

Is used to turn the tube ends according to the preseted length. chamfer and dig the powder of tube ends automatically.

Functions :

1. PLC automatically controlled, human-computer interface. One man can operate three or four machines simultaneously.

2. The elements are automatically loaded, and then centered so the same amount will be cut from each end, thus ensuring that the original length can be maintained.

3. Show how to clear the error automatically.

Main Technical Parameters :

1. Power supply : Triphase 380V, 50Hz
2. Rated power : 1.6KW
3. Air supply : 5 -7kg/cm2
4. Applicable tube diameter : Φ5.2mm - Φ 15mm
5. Applicable tube length : 110 - 1500mm
6. Efficiency : Above 5500pcs/8h(below tube length 500mm)
7. Size (LxWxH) : 2100x850x1350(mm)
8. Weight : 450kg
