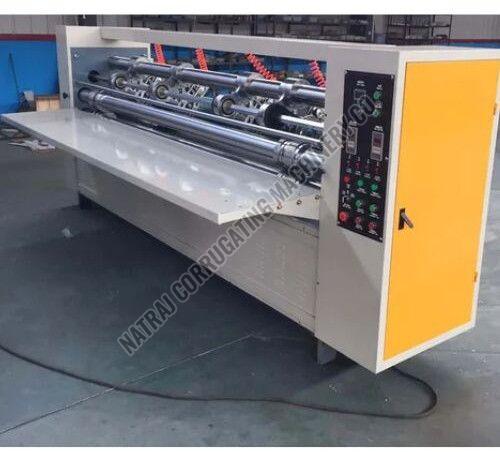

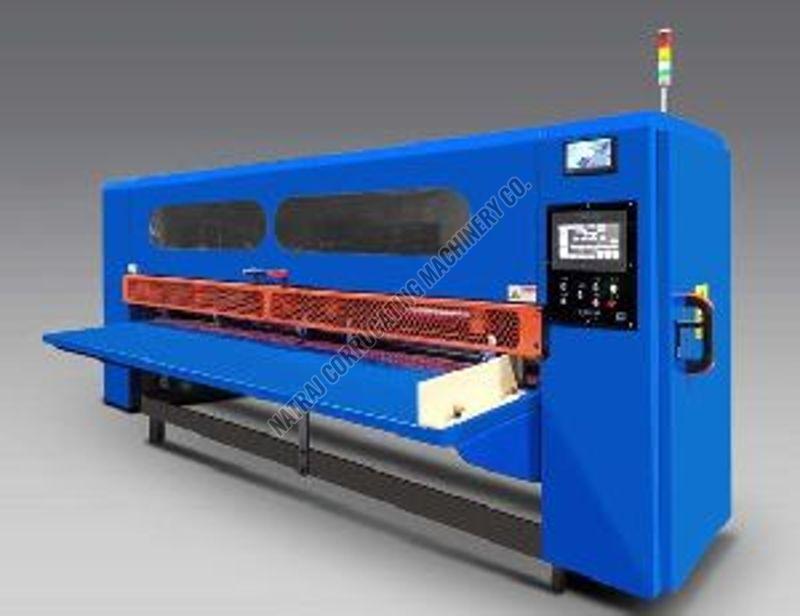

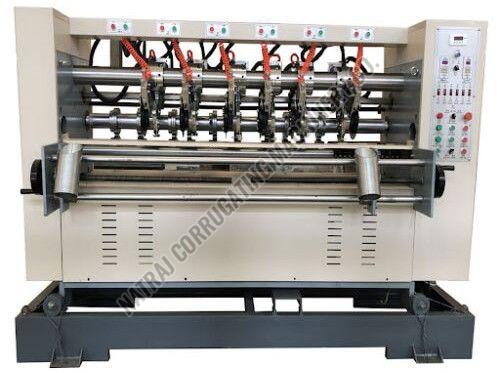

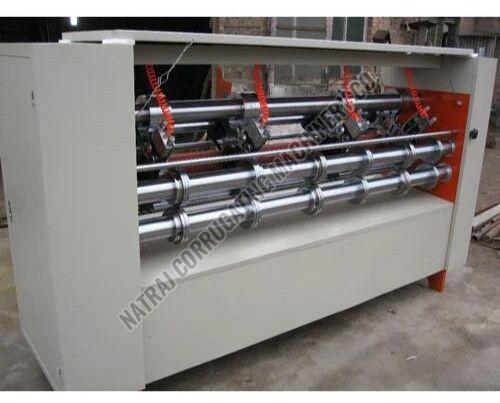

Automatic Thin Blade Slitter Scorer Machine

1. No need skilled worker, new hand can operate.

2. Intelligent adjustment, can minimize the harm to workers.

3. 4 blades 6 scorer wheels, servo motor control, 3 seconds in place, more precision. Scoring synchronize with pre-score.

4. Free of position baffle adjustment.

5. Can shift the order when the main motor is running. 600pcs orders memory stroage.

6. Digital system control.

7. 6 axis scoring, slitting without slant.

8. Pre-creasing, creasing , board clipping is controled by motor. Visual system, can observe the production situation on time.

9. Whole machine adopt interational famous eletrical elements to  ensure the quality. ( schneider servo motor, device, plc)

10. Self-developed operation system, more personalized and convenient

minimum board length : 480 mm.

minimum board width : 140mm-270mm

minimum crease gap :  40mm

slitting creasing precision :+-0.5mm

blade specification : 200x122x1.2mm

suitable board thickness : 2-12mm

ridge of  creasing wheel : can choose according to the customer requirement

whole weigth :2200 - 3200 kg. (diff. Model diff. Weigth)
