Utilizing state-of-the-art packaging tools and superior grade supplies, we pack our products and help them remain protected from external damages. Furthermore, the packages are labeled properly for information. We are a quality-driven firm and dedicatedly work towards attaining maximum client satisfaction. And, for this, we have adopted several measures for ensuring high quality of our products.

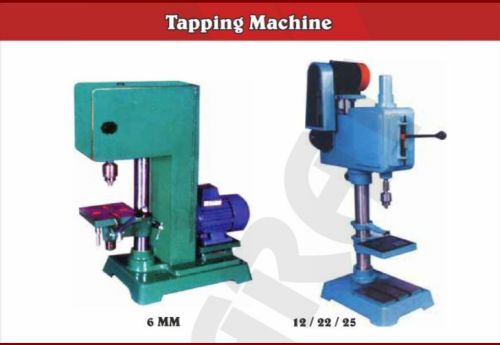

| Specification of Machine | Tapping Machine 6 mm. |
Tapping Machine 12 mm. |
Tapping Machine 22/25 mm. Manual |
|---|---|---|---|
| Tapping Machine Capacity | 6 mm. | 12 mm. | 22/25 mm. |
| Drilling Capacity | 3 mm. | 8 mm. | 16 / 19 mm. |
| Spindle travel / Table travel (6mm) | 60 mm. | 75 mm. | 75 mm. |
| Distance Spindle to Column | 80 mm. | 140 mm. | 237 mm. |
| Distance between chuck to base | 190 mm. | 450 mm. | 670 mm. |
| Distance between chuck to Work table | Movable | 380 mm. | 520 mm. |
| Size of base Plate-L X B | 370 x 250 mm. | 480 x 350 mm. | 550 x 410 mm. |
| Size of Work Table-L X B | 150 x 150 mm. | 190 x 220 mm. | 260 x 260 mm. |
| Diameter of column | 47 mm. | 74 mm. | 74 mm. |
| V-Belt (Inside) | - | inside A-71 | inside B-72 |
| V-Belt for Motor (Outside) | A-36 | A-32 | B-33 |
| No. of Spindle Speeds | 3 | 3 | 3 |
| Forwards Speed Range | 480/750/1400 | 350/620/1100 | 220/320/460 |
| Reverse Speed Range | 480/750/1401 | 4201745/1315 | 260/380/545 |
| Motor Single phase or three phase | 0.5 H.P. ,1440 R.P.M | 1 H.P.,1440 R.P.M. | 1.5I2 H.P.,1440 R.P.M. |
