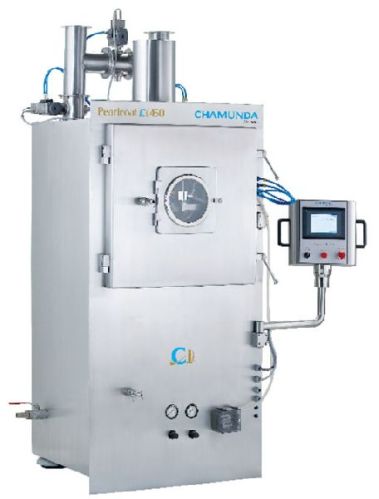

Automatic Tablet Coating

Listing ID #3838574

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

Pearlcoat Ci auto coating systems are intelligently innovated for consistency, simplicity and flexibility in coating. It is a system that operates for any kind of coating automatically by process....

View More Details

Send Enquiry

Product Details

Pearlcoat Ci auto coating systems are intelligently innovated for consistency, simplicity and flexibility in coating.

It is a system that operates for any kind of coating automatically by process integrated control system.

Ci – Auto coating system stands testimony to the fact that a precisely controlled process is best achieved with matched system components in keeping with the desired coating objectives.

A highly efficient pan design, solution spray system and process control provides accurate batch consistency with high production efficiency.

System also provides all the professional disciplines necessary to design, test, manufacturer and install a tailor-made system to suit your need.

cGMP legislations are the minimum acceptable standards in manufacturing.

FEATURES

In compliance with cGMP guidelines
Modular Design
Accurate batch consistency with high production efficiency & effective spraying with special design anti bearding type guns
Accurate temperature control within ± 2° C
In-built WIP system
Quick accessibility for maintenance & cleaning
Quick release of Plenums for cleaning of Pan and Plenums.
Effective sealing of doors.
Fully Automatic Operation through Programmable Logic Controller
Sugar Coating System (optional)
Interchangeable Pans upto ci 900 model (optional)
Flameproof Construction (optional)

MODEL	Ci 450	Ci 900	Ci 1200	Ci 1500	Ci 1650
Working Capacity – kg*	5-7	45-70	100-150	200-350	400-500
Pan Diameter – mm	450	915	1220	600	600
Pan mouth Diameter – mm	200	300	480	600	600
Pan Speed – RPM	2-18	2-15	2-15	2-15	2-15
Main Drive Motor HP	1	1.5	3	5	7.5
Inlet/Outlet Fan Air Volume (CFM ± 10 %)	590	900	1750	3500	5000
Electric Heater – kW	22	34	N.A.	N.A.	N.A.
Compressed Air Pressure (bar)	6
Electrical Supply**	415 V ± 10 %, 3 Ø, AC
