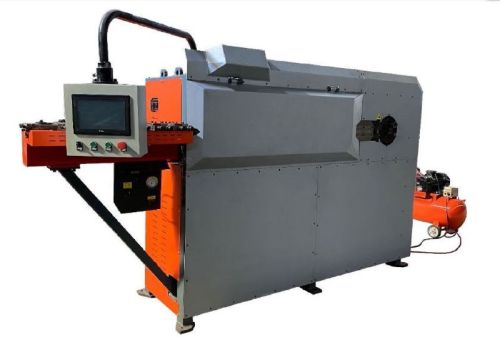

Automatic Stirrup Bending Machine Orw-12-a, For Construction Industry

Listing ID #7270265

25 Lakh / Pieces

Get Latest Price

MOQ 1 Piece(s)
Packaging TypeN/A
PressureN/A
PhaseThree Phase
Overall LengthN/A
Preferred Buyer Location India only

View More Details

Send Enquiry

Product Details

Packaging Type N/A
Pressure N/A
Phase Three Phase
Overall Length N/A
Size (mm) N/A
Working Capacity 100 - 150 Tons With 10 Hours X 2 Shifts/Day And 26 Days/Month
Usage CONSTRUCTION INDUSTRY
Specialities Long Life, High Performance, Easy To Operate
Dimension (LxWxH) 3600 X 700 X 2000 Mm
Material Cast Iron
Driven Type Electric
Warranty 1 Year
Corrosion Resistance N/A
Machine Structure Horizontal
Operating Type Automatic
Reverse Rotation N/A
Is It Variable Speed N/A
Brand Name SUBHI
Thickness N/A
Voltage 415 V
Frequency 50 Hz
Power 6.2KW A) Traction Motor - 11 Kw B) Bending Motor - 7.5 Kw C) Cutting Motor- 4 Kwd) Air Compressor -
Accuracy N/A
After-Sales Service Provided N/A
Country of Origin India
Max Bending Radius N/A
Compressed Air Required 6 [I/mm]
Type AUTOMATIC STIRRUP BENDING MACHINE
Spindle Torque N/A
Weight 3000kg
Tamper Resistant N/A
Color Grey, ORANGE
Binding Speed N/A
Condition New
Finishing N/A
Width N/A
BENDING TOLERANCE ±1°
MAXIMUM BENDING ANGLE 180° [Double Direction]
MAXIMUM PULLING SPEED 90 [m/min]
AVERAGE AIR COMPRESSED CONSUMPTION 6 [I/mm]
AVERAGE ELECTRIC POWER CONSUMPTION 5-7kw/h
PRODUCTION CAPACITY OF DOUBLE WIRE Φ4 – 8 [mm]
PRODUCTION CAPACITY PER MONTH 100 - 150 Tons with 10 Hours x 2 shifts/Day and 26 Days/Month
WORKING ENVIRONMENTAL TEMPERATURE -5° C to 40°C
LENGTH TOLERANCE ±1 mm
PRODUCTION CAPACITY OF SINGLE WIRE Φ4 – 10 [mm]
LABELED ELECTRIC POWER 26.2KW a) Traction Motor - 11 kw b) Bending Motor - 7.5 kw c) Cutting Motor- 4 kwd) Air Compressor - 3.7 kw
MAXIMUM BENDING SPEED 900 [°/sec]
OVERALL MACHINE WEIGHT 3000kg
MANDRELL DIAMETER 13 - 30 [mm]

An automatic stirrup bending machine is a special tool used in building things and making stuff. It takes metal bars, usually made of steel, and bends them into shapes called stirrups. Stirrups are important parts of strong concrete structures. The machine is controlled by a computer and can bend the metal bars just right every time. This makes the stirrups really good quality. Using this machine helps people make things faster because it does a hard job all by itself. It also makes sure things are the right shape, stops waste, and keeps people safe by not making them lift heavy metal bars.
