Automatic sticker labelling

Listing ID #3764342

Get Latest Price

Length 30 mm to 180 mm
Conveyour Height760 mm to 910 mm Adjustable
b) 0.5 HP for Pressing unit
Model NoDSL - 150
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Overall Dimensions 1835 mm (L) x 870 mm (W) x 1450 mm (H)
Ø 22 mm to Ø 100 mm Diameter Label Size
Electrical Rating a) 0.5 HP for conveyour drive
Width 16 mm to 90 mm Roll Size
INPUT SPECIFICATION Container Size
Speed Up to 150 labels per minute depending on product size and label size
b) 0.5 HP for Pressing unit
Power Characteristics 230 Volts Single Phase AC, 50 Hz
Model No DSL - 150
Direction of Movement Left to Right
Length 30 mm to 180 mm
c) 6 V DC Stepper Motor for Sticker Roll.
Conveyour Height 760 mm to 910 mm Adjustable
ID 75 mm x 300 mm O.D Maximum Space Between two Labels

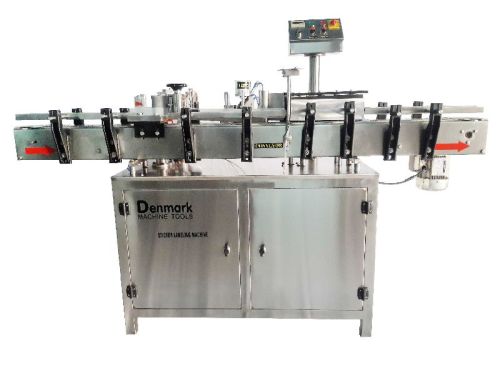

The Automatic Vertical Sticker Labeling Machine is one of the most user friendly. The machine is suitable for labeling on round Vials, Bottles and other round objects. It is capable of labelling up to 150 containers per minutes depending on product size and label size.

The Automatic model is equipped with roller spacing device resulting in a simple to “No change parts required.” The in built automated label length detection systems eliminates any need for manualing feeding and storing of label length data in memory and retrieving the same every time for change of label size and re-starting the machine. The system thus saves valuable time, avoiding machine-down time, and helps to achieve higher production.

UNIQUE FEATURE

No label data input / retrievals programming require for any label size.
No change parts required.
Virtually maintenance free machine.
Stainless steel 304 construction.
GMP Design.
User friendly label placing adjustment.
Built in A.C. variable frequency drive system.
Accurate label placement.
In built digital pulse counter.
Suitable for Glass, Plastic, Pet, Aluminum, Tin containers.

OPTIONAL FEATURE

Printing unit ( 6 bar Air Pressure Required for Printing device )
Turn table ( Un Scrambler )
