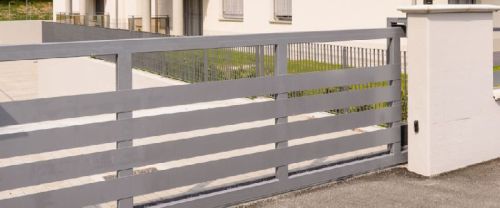

Contact SupplierAutomatic sliding gates are the ideal solution for securing entrances of residential, commercial and industrial premises. These gates are available in 8 different versions ranging from 300 kg to 2200 kg of maximum gate leaf weight. Arka Anand Automation designs the sliding gate solutions providing complete automation kits for these, medium to heavy weight sliding gates.
Â
FeaturesBesides the normal command and safety functions, the new electronics found in the 230V Bk series certain features that enable total control and optimal performance of the product. This makes the BK series an extremely safe and secure product with great performance.
Â
When total power, performance, and reliability are needed, the Bk three-phase technology allows the operator to reach its full potential. Extremely robust, reliable and precise in operation, the Bk is equipped with adjustable feet, to fit perfectly to the supporting surface and the transmission rack at the side of the gate, and is fixed in the ground. Motors are built to the IP54 rating and are available in the range of 300 kg to 2200 kg.
The operator incorporates electronics controlled by an encoder for safe, constant movement and safety of the users.
Increased thrust required in operation
The 230 V – 400 V three-phase electronics enables additional dynamic thrust at the beginning of opening or closing the gate, addressing any potential issues related to the weight of the gate itself.
Inertia control
Just as in potential issues in the beginning phase of opening or closing gates, large weight of the gates can cause passive inertia at the end of opening/closing phases. Bk-2200T with its new ZT6 control panel addresses these effects of passive inertia, making access safer. Also when in motion or not, obstacle detection through photocell is an added advantage and is available at additional cost.
Frequent accesses
In industrial installations, where use may be frequent leading to intensive operating conditions, the three phase electronics stands in good stead.
Model | Weight | Gate Leaf Length | Special features |
BK – 800 | 800 kg | 20 m | |
BK – 1200 P | 1200 kg | 20 m | Practico radio release system |
BK – 1200 | 1200 kg | 20 m | |
BKE – 1200 | 1200 kg | 13 m | Encoder along with 230V motor & panel |
BK – 1800 | 1800 kg | 20 m | |
BKE – 1800 | 1800 kg | 20 m | Encoder along with 230V motor & panel |
BK – 2200 | 2200 kg | 20 m | |
BKE – 2200 | 2200 kg | 13 m | Encoder along with 230V motor & panel |
