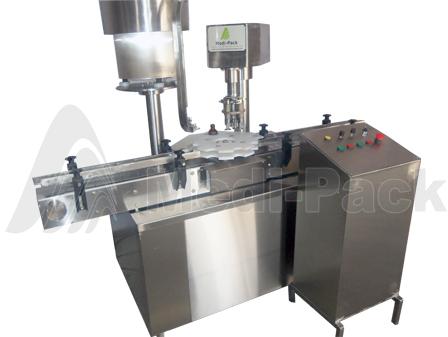

Contact SupplierThe Automatic Cap Sealing Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. |
 |
Operation : |
The feed container moving on conveyor belt are fed into star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head. Where the sealing head is performing perfect operation of threading & sealing. |
 |
Â
Salient Features :
Model : | MPARCS-60 | ||
Output/Hour : | 1000 to 3000 bottles. | ||
Direction of Movement : | Left to Right | ||
No. of Sealing Head : | 1 Nos. | ||
Electrical Specification** | Main Motor Cap Feeding Bowl |
1 HP / 415 Volts / 50 Hz. 300 Watt, Magnetic coil |
|
Height of Conveyor ** : | 860 mm to 910 mm | ||
Machine Dimensions ** : | 1525 mm (L) x 850 mm (W) x 1900 (H) Approx. | ||
Case Dimensions : | 1750 mm (L) x 1100 mm (W) x 2250 (H) Approx. | ||
Net Weight : | 350 Kgs. Approx. | ||
Gross Weight : | 550 Kgs. Approx. | ||
Change parts required : |
(A) Container: Star Wheel, Back Guide, Feed Worm (B) Cap Die, Delivery Chute, Bowl |
||
Input Specifications | |||
ROPP Cap Specification : | Diameter** | 19 mm to 38 mm** | |
Height** | 15 to 18.3 mm | ||
Container Size** : | Round Shape | (A) Ø 22 mm to Ø 100 mm *** (B) Height 58 mm to 240 mm*** (Height option for other bottle height available) |
|
Flat / Square | (A) 15mm to 100 mm (Length)*** (B) 10mm to 50 mm (Width)*** (C) 58 mm X 240 mm (height)*** (Height option for other bottle height available)sc |
||
* Depends on size, shape and Neck dia of container ** Can be supplied as per customer requirements. *** With help of change parts. |
