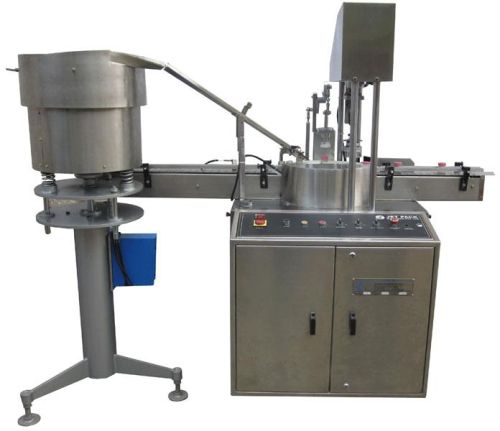

Automatic Single Head Capping Machine

Listing ID #425043

We are offering automatic single head capping machine.
model -(jet-cap-sh)
machine name automatic single head capping machine
model no jet- cap-sh
applications for the capping machine hing powder bottles, custard powder/chocolate powder bottles/ coffee powder jars, milk bottles, ghee bottles, milk powder bottles, juices, syrup, honey,
advantages of automatic capping machine
 simple design.
 high speed operation.
 low power consumption.
 main features of capping machine -“no container - no cap arrangement".
 online / offline operation can possible.
 our machines are also for applying round or other shape of glass, plastic, pet, ldpe, and hdpe bottles with the aid of change parts or capping head.
 minimum labour requirement.
 the machine has output up to 60 bottles/min depending on the size and shape of the bottle.
 online operation can be possible with liquid or powder filling line.
general specification
power input 1 kw, 3ph, 440v, 50hz
motor • machine main motor-1. Hp, bonfiglioli/remi/siemens make.
• machine conveyor motor- 0.5 h.p- geared motor bonfiglolie make.
• torque motor(capping )- 0.5 hp- bonfiglolie
total power 1.5 kw
air consumption 5 cfm
speed up to 60 bpm (depending on the size and shape of the bottles.
