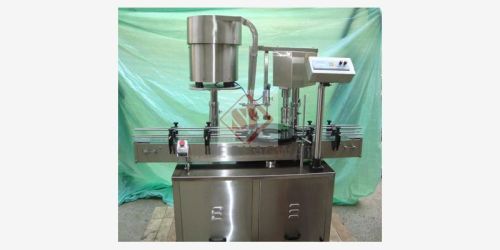

Automatic Single Head Bottle Screw Cap Sealing Machine

Listing ID #3829663

Get Latest Price

PhaseSingle Phase
Vibratory Bowl FeederMild Steel Cladded in Stainless Steel 304
BowlStainless Steel 304
ProxyAutonix / Pulset
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Phase Single Phase
Capping Head Gear Box Make Bonfiglioli Ratio: 20:1
Guide Rod Stainless Steel 304 (10mm Round Bar)
Bearings SKF / Nachi / Timken
Suitable for Products PET / Glass/Aluminum/ HDPE Bottle
Elevator Belt PVC
Caps Feeding Vibratory Bowl Feeder
Caps Hammering Pneumatic System
Slat Chain Pitch 3.5” Stainless Steel 304
Vibrator Pillar Mounting Main Platform
Pneumatics SMC / Festo / Janatics
Application To Tight & Seal the Caps on Bottles
Cap Elevator Gearbox Make (If machine is with Elevator) Bonfiglioli Ratio: 20:1
Machine Coverings Complete in Stainless Steel 304
Machine main frame Square Pipe, Stainless Steel 304
Machine Motion Rotary Motion -Index Based
Conveyor Slat Stainless Steel 304 Slat with Nylon Strips on Side
Machine Weight Approx 300 Kgs
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Electrical Wiring Ferrule Numbering on all the wires with Proper Markings
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Production Speed Per Hour 1800 to 3000 Bottles per Hour (Speed Depends up on the size of caps & bottles).
Support Rod on Existing point of indexing Starwheel Stainless Steel 304
Control Panel Relay Card (Push Button Type )
Bowl Stainless Steel 304
Product Contact Parts Stainless Steel 304
Guide Brackets Spectra make – Plastic
Capping Head Pillar Mild Steel with ENP / Hard Chrome
Cap Elevator Motor Make (If machine is with Elevator) Bonfiglioli
Star Wheel with Back Guide 12 mm thick UHMW / Nylon
Machine Dimension Approx 1830mm (L) x 1220mm (W) x 2440mm (H)
Up-Down Movement Mechanical (Cam System)
Compressed Air Required 3 H.P Compressor (6 bar pressure 0.5 CFM)
Working Height 860 mm (+50 mm)
Sensor Make Sick / Leuze / Panasonic
Plating(Wherever Applicable) ENP / Zinc / Hard Chrome / Blackening
Conveyor Sprockets Mild Steel or Nylon
“No Cap in Shute Elevator Stop” Sensor (If machine is with Elevator) Panasonic
Cap Elevator frame (If machine is with Elevator) Stainless Steel 304
Electrical Components ABB / Delta /Spectra
Capping Unit Stainless Steel .304
Capping Head VFD Make 1 H.P Delta
Guide Size 100mm / 150mm
Machine Name Automatic Single Head Screw Caps Sealing Machines
Power 1 H.P / 230 V.AC
Shute Stainless Steel 304
No Cap in Shute Elevator Stop (If machine is with Elevator) Sensor
Conveyor Length 6 Feet Depending upon the product
Capping Unit Magnetic Screw Capping Head with Torque Adjustment
Model SBCS-60S
Machine Platform Approx 1210mm (L) x 810mm (W)
Proxy Autonix / Pulset
Option With Bowl or With Cap Elevator
Capping Head Motor Make 1 H.P Bonfiglioli
Air Pipes SMC / Festo / Janatics
Vibrator Stand Mild Steel with ENP Plating
Change Parts Required in case of change in Cap Size & Bottle Size
Speed Synchronization of Star Wheel & Capping Head Variable Frequency Drive
Wires & Cables Labb
Vibratory Bowl Feeder Mild Steel Cladded in Stainless Steel 304

We are leading supplier of this product.

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Multipack Machinery, One Of The Leading Manufacturer And Exporter Of Ampoule Sticker Labeling Machine, Bottle Sticker Labeling Machine, Front & Back Labeling Machine And Other Pharma Machinery And Parts. We Have Well-Planned And Well-Equipped State Of The Art Advance Manufacturing Facility And Separate Administrative Offices With Worldwide Network Of Agents And Representatives.

Nature of Business Manufacturer / Exporter / Supplier
Year of Establishment 1998
