Automatic Self Abhesive Two Side Flate Bottle

Automatic Self Abhesive Two Side Flate Bottle

Listing ID #3912564

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

The Automatic Vertical Sticker Labeling Machine MPASAL-150TF is one of the most users friendly. The machine is used for two sides labeling on flat surface of different size of flat container. It....
View More Details
Send Enquiry

Company Information

Medi Pack Process Technologies verified-icon
Sardar Patel Ring Road, Ahmedabad, Gujarat
View Number
  • Member Since 11 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

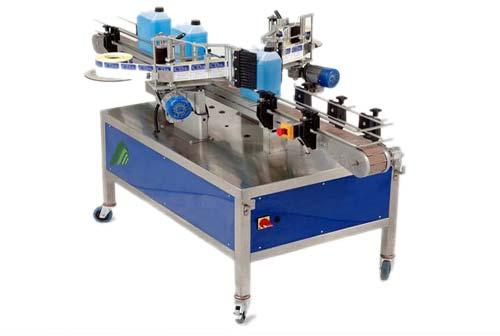

The Automatic Vertical Sticker Labeling Machine MPASAL-150TF is one of the most users friendly. The machine is used for two sides labeling on flat surface of different size of flat container. It is capable to labeling up to 150 containers per minutes depending on products and label size. The automatic model is equipped with belt spacing device resulting in a simple to “No change parts required”.

Operation :
The round containers positioned & curate spacing between two containers by the belt spacing device and a belt drive mechanism hold the container from top of the container for two sides labeling on flat container at the labeling point, an electronics product sensor sense container & relies a label from self adhesive label roll. If machine is equipped with batch printing device in that case batch printing device prints the batch no. & other matter on label during label is stationary means time between sensing of two label. The sensed round container moves on conveyor sticker label at labeling point wrapped around to container. Then the labeled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of label.




Salient Features :
  • High Production Speeds.
  • Suitable for any type of Flat Container.
  • Container hold from top for perfect & accurate labeling.
  • Stainless steel 304 construction.
  • GMP design.
  • Accurate label placement.
  • Full Security Package including counter.
  • Secondary pressure unit.
  • PLC with Soft Key Pad System.
  • Product data storage Facility.
  • No change parts requirements.
  • Very less down time for change over.
  • Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.
Optional Features :
  • Online printing device.
  • Online inspection of batch no & printing.
  • Acrylic cabinet.
  • Servomotor instead of steeper motor.


Technical Specifications :

Model : MPASAL-150TF
Output/Hour : 3600 to 9000 Nos.
Direction of Movement : Left to Right
Electrical Specification** 0.25 HP, 230 Volts, 50 Hz
90 Watt, Gear Motor
6V DC / 40 Kgs. x 2 nos.
Height of Conveyor ** : 860 mm to 910 mm
Machine Dimensions ** : 2135 mm (L) x 1750 mm (W) x 1450 mm (H)
Case Dimensions : 2350 mm (L) x 1950 mm (W) x 1650 mm (H)
Net Weight : 450 Kgs.
Gross Weight : 750 Kgs.
Input Specifications
Label Specification : Length** 30 mm to 180 mm
Height** 16 mm to 100 mm
Space between two label Min. 3 mm in anti clock wise
Roll Diameter Max. 300 mm X ID 75 mm
Container Size** : Flat / Square 15mm to 100 mm (Length)
Respectively 10mm to 50 mm (Width)
Respectively height 58 mm X 240 mm
(Height option for other bottle height available)
* Depends on size, shape and Neck dia of container
** Can be supplied as per customer requirements.
*** With help of change parts.
