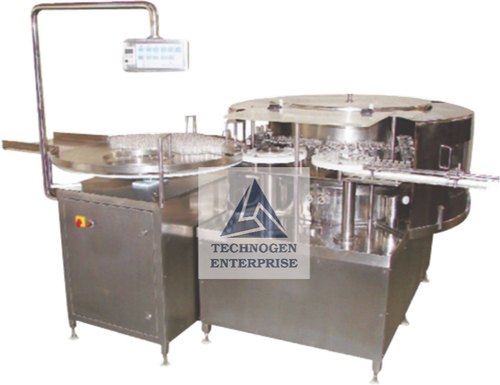

Automatic Rotary Vial Washing Machine, Voltage : 440v

Listing ID #6261283

Technogen Enterprise stands out as a noteworthy manufacturer, supplier, and exporter of the highly efficient Automatic Rotary Vial Washing Machine, catering to the needs of pharmaceutical and injectable formulation plants. This state-of-the-art machine is designed to perform the crucial task of washing both the external and internal surfaces of vials in a Rotary Continuous Motion. The machine utilizes a cutting-edge Gripper system that securely holds the vial from its neck, then inverts it during the washing process, and finally releases the vial onto the outfeed starwheel in a vertical position.

The Automatic Rotary Vial Washing Machine boasts a well-designed dome, housing six washing stations, which efficiently execute three different types of internal water washes. These include Recycled Water Wash, Purified Water Wash, and WFI Wash. Additionally, the machine features three air washes to ensure thorough and effective cleaning of the vials' internal surfaces. To complement the internal cleaning process, the machine is equipped with one air wash and one water wash for the external surface cleaning of the vials.

At Technogen Enterprise, we prioritize the development of high-performance and reliable solutions that meet the stringent requirements of pharmaceutical and injectable formulation industries. Our Automatic Rotary Vial Washing Machine exemplifies our commitment to excellence, precision, and efficiency. Experience the benefits of cutting-edge technology and unmatched performance with Technogen Enterprise as your trusted partner for all your vial washing needs.

Feature:

• CGMP Model
• Washing process visible.
• Infeed turntable to feed vial to washing station.
• Worm Gear box and Motor for Main Machine drive.
• Servo driven / Mechnical Cam dive-in type washing nozzles.
• Water heater for Recycled water tank with temperature controller .
• Three types of water washes such as Recycled Water Wash, Purified Water Wash & WFI followed by Sterile Compressed Air.
• Suitable filtration system Purified water ,WFI water ,Recirculated water & Air.
• Pressure transmitter system for Air & Water with Interlock.
• Temperature transmitter system for Monitoring recycled water temperature with Interlock.
• Aseptic diaphragm type valves for Air/Water medium.
• Material of Construction of all Crtitical contact parts with internal surface of Vials & the wash media are made from AISI 316L.
• SS 316 suitable piping duly Orbital welded & Electro polished.
• Vapour exhaust system with blower to drain condensate (Ducting in Customer Scope)
• Auto Drain Facility at the End Of Batch (Optional)
• Washing station & outfeed of washing machine will be covered by Polycarbonate cover
• PLC with touch screen HMI .
