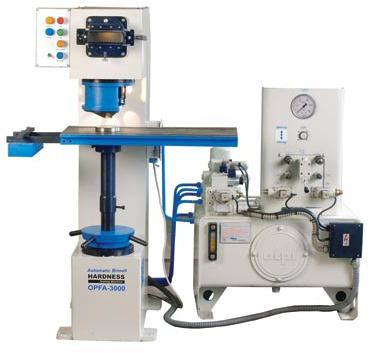

Automatic Optical Brinell Hardness Testing Machine

Listing ID #101753

‘FINE SPAVY ASSOCIATES & ENGINEERS PVT. LTD.’ is proud to present world class Automatic Optical Brinell Hardness Testing Machines that are specially designed for testing of cast or forged components like lead springs, carn shafts and many other items. Our Automatic Optical Brinell Hardness Testing Machines are praised by our clients for fast and automatic operations with minimal operational fatigue. The easy availability and affordable prices of our machines have cemented our place among the leading Automatic Optical Brinell Hardness Testing Machine manufacturers and exporters from Miraj, Maharashtra.
Main Components :-
C – type load frameOptical measuring equipment with 14 x magnificationSupporting table with size of 260 x 400mm
Specifications :-
Cycle time (except job loading / unloading) - 12 seconds per testLoad stages – 750kgf & 3000kgfMachine test (height x throat) - 365 x 200 mmSize of supporting table - 260 x 400mmLoad capacity of supporting table – 200kgAccuracies conforms to is:2281-2005 & bs:240
Widely Used In :-
FoundriesEngineering industry
