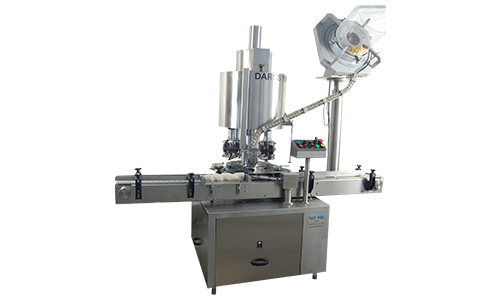

Contact SupplierNo container no cap arrangement. Single motor synchronizes conveyor, star wheel, & platform turret. Drain tray around the machine platform. S.S. elegantly matt finish body. Adjustable height of conveyor belt, to align with other machine of the line. Adjustable bottle height gauge for easy and quick setting. Specially designed hopper is provided to increase storage capacity of bowl. Sealing pressure can be varied to suit different gauge and size of caps.
SS cladding or hard chrome platting of all exposed part to ensure long life and resistance against corrosion. Low noise level, low power consumptions.
Self-lubrication UHMW-PE guide profile for low frication wears surface, smooth and noiseless conveying. Universal coupling for quick and easy setting of In-feed worm. Synchronized A/C drive to synchronize, Conveyor, Star wheel and Platform turret & capping bowl.
Model | DARCS-100 | DARCS-150 | DARCS-200 |
Output / Hour* | 3600 to 6000 bottles. | 3600 to 6000 bottles. | 4000 to 12000 bottles. |
Direction of Movement | Left to Right | ||
Number of head | 4 Nos. | 6 Nos. | 8 Nos. |
Electrical Specification** Main Motor |
1.5 HP / 415 Volts / 50Hz. | ||
Cap Feeding Bowl | 0.25 HP / 415 Volts / 50 Hz. | ||
Height of Conveyor** | 860 mm to 910 mm |
