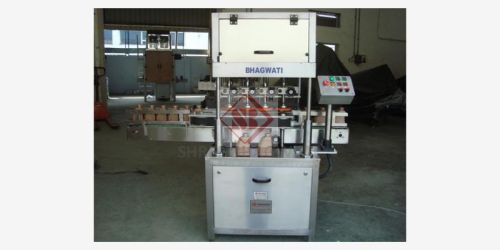

Automatic Linear Screw Capping Machine, Power : 1 H.P / 230 V.AC

Listing ID #3829685

Get Latest Price

Rated Power1 H.P / 230 V.AC
Elevator BeltPVC
Machine MotionRotary Motion -Index Based
Conveyor ShaftsMild Steel with Hard Chrome or Zinc Plating
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Rated Power 1 H.P / 230 V.AC
Machine Weight Approx 300 Kgs
Conveyor Sprockets Mild Steel or Nylon
Machine Name Automatic Linear Screw Caps Sealing Machines
Change Parts Required in case of change in Cap Size & Bottle Size
Production Speed Per Hour 1800 to 3600 Bottles per Hour (Speed Depends up on the size of caps & bottles).
Control Panel Relay Card (Push Button Type )
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Plating(Wherever Applicable) ENP / Zinc / Hard Chrome / Blackening
Capping Head Pillar Mild Steel with ENP / Hard Chrome
Vibrator Pillar Mounting Main Platform
Conveyor Slat Stainless Steel 304 Slat with Nylon Strips on Side
“No Cap in Shute Elevator Stop” Sensor (If machine is with Elevator) Panasonic
Star Wheel with Back Guide 12 mm thick UHMW / Nylon
Cap Elevator frame (If machine is with Elevator) Stainless Steel 304
Vibratory Bowl Feeder Mild Steel Cladded in Stainless Steel 304
Electrical Wiring Ferrule Numbering on all the wires with Proper Markings
Application To Tight & Seal the Caps on Bottles
Bowl Stainless Steel 304
Cap Elevator Motor Make (If machine is with Elevator) Bonfiglioli
Capping Head Gear Box Make Bonfiglioli Ratio: 20:1
Machine Dimension Approx 1830mm (L) x 1220mm (W) x 2440mm (H)
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Capping Unit Stainless Steel .304
Cap Elevator Gearbox Make (If machine is with Elevator) Bonfiglioli Ratio: 20:1
Wires & Cables Labb
Vibrator Stand Mild Steel with ENP Plating
Up-Down Movement Mechanical (Cam System)
Phase Single Phase
Capping Unit Magnetic Screw Capping Head with Torque Adjustment
Bearings SKF / Nachi / Timken
Machine main frame Square Pipe, Stainless Steel 304
Machine Platform Approx 1210mm (L) x 810mm (W)
No Cap in Shute Elevator Stop (If machine is with Elevator) Sensor
Pneumatics SMC / Festo / Janatics
Caps Hammering Pneumatic System
Conveyor Length 6 Feet Depending upon the product
Guide Size 100mm / 150mm
Air Pipes SMC / Festo / Janatics
Guide Brackets Spectra make – Plastic
Electrical Components ABB / Delta /Spectra
Option With Bowl or With Cap Elevator
Compressed Air Required 3 H.P Compressor (6 bar pressure 0.5 CFM)
Speed Synchronization of Star Wheel & Capping Head Variable Frequency Drive
Capping Head Motor Make 1 H.P Bonfiglioli
Sensor Make Sick / Leuze / Panasonic
Support Rod on Existing point of indexing Starwheel Stainless Steel 304
Machine Motion Rotary Motion -Index Based
Model SBCS-100S
Proxy Autonix / Pulset
Shute Stainless Steel 304
Elevator Belt PVC
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Working Height 860 mm (+50 mm)
Guide Rod Stainless Steel 304 (10mm Round Bar)
Suitable for Products PET / Glass/Aluminum/ HDPE Bottle
Capping Head VFD Make 1 H.P Delta
Caps Feeding Vibratory Bowl Feeder
Slat Chain Pitch 3.5” Stainless Steel 304

We are leading supplier of this product.
