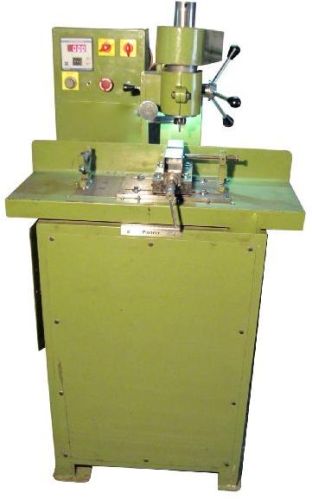

Roto Technik is one of the fastest growing company in India that has developed an Automatic Key-Way Milling Machine. As the name suggest, its function is to automatically perform the milling operation of key-ways on shafts. It is a basic machine for all machine tool industries. Our value addition is to automate the task so that our clients can achieve higher productivity while performing the key-way milling operation.
Operations:
It is an automatic key-way milling machine, specially designed for making key-ways on shafts. It has robust design to give precise key-ways for mass production. Self centring vice clamps the shaft. The feed is automatic with an automatic depth of cut of 0.1 mm per stroke. At desired final depth the machine stops automatically with instant sound of buzzer.
Â
| Parameters | RT-AKWM-1 | RT-AKWM-2 |
| Max. Spindle Speed | 1500 rpm | 1500 rpm |
| Table Feed | 0-0.6 mt/min | 0-0.6 mt/min |
| Shaft Diameter | 9 mm – 55 mm | 9 mm -100 mm |
| Max. Length of Key-way | 5 mm – 150 mm | 5 mm – 200 mm |
| Key-way Size | 3 mm – 12 mm | 3 mm – 20 mm |
| Standard Collet | ER – 20 | ER – 32 |
| Coolant Pump | Optional | Optional |
