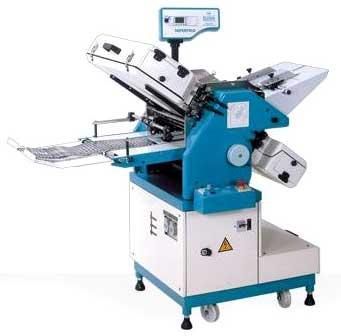

Friction Feed Folding Machine (PGV-FF415) is fitted with a high-speed friction feeder enabling it to handle a wide range of paper with ease and efficiency. The friction feeder of Friction Feed Folding Machine feeds a single paper at a time and paper settings are easy to understand.

Advantages

• Basic four parallel folds' machine
• Combination of four folding pockets and three deflectors
• Maximum four folds are available
• Single, double or triple folds
• Different styles such as accordion fold,  fold, double parallel fold, uneven folds etc.
• Suitable for non coating jobs
• Feeds a single paper at a time
• Setting of paper is easy to understand
• Rotary scoring (creasing) attachment
• Belt drive coupled with thick end plates ensures smooth and low noise working
• Caliper setting and jogging mode available
• Compatible with optional vertical stacker
• Ergonomic design
• User friendly operating panel
• Emergency stop
• Optional noise reduction hoods and
• Paper Jam Detection feature

Specifications :

Max. Format 375 x 600 mm Min. Format 70 x 110 mm Min. Folding 18 mm Output 19000 sheets per hour (A 4 / single fold) Roller Speed 150 m / min Paper Gsm 47 gsm to 130 gsm Power 220 V, 1 ph, 250 W With Maintenance free AC Drive
