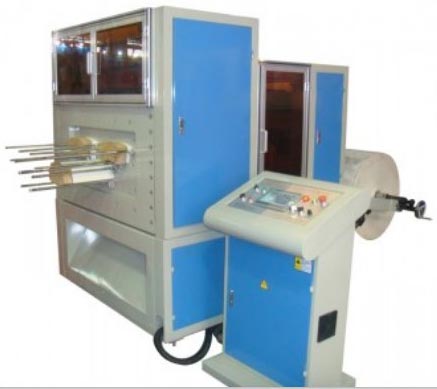

Contact SupplierAutomatic Die Punching Machine is designed with human-computer interface that offers simple operation. We are named among the renowned Manufacturers and Suppliers of Automatic Die Punching Machine from Punjab, India. Our Die Punching Machine features servo motor driving and positioning system, AC frequency converter, auto-counting device, manual (pneumatic)lock plate, photoelectric error-correction device, electromagnetic clutch, centralized lubrication system, over-load protection device and rotational mechanism. The Die Punching Machine that we offer is known for its smooth paper feeding and unwinding and accurate positioning.
Characteristics :
Die-cutting precision | +-0.10mm |
---|---|
Rated die-cutting speed | 60-100times/min |
Highest die-cutting speed | 110 times/min; 5,400times/hour |
Highest die-cutting pressure | 120T(250N/cm2) |
Max. suitable paper size | 900 x 530mm |
Max. suitable paper size | 900 x 530mm |
Min. suitable paper size | 490 x 400mm |
Paper specification | 130~500g/m2 |
Motor power (total) | 11kw |
Main motor power | 7.5kw |
Overall dimension | 4,000 x 1,700 x 1,700 mm |
Machine weight | 6,000kgs |
Optimum environment | ventilating and dry conditions, 10-25℃ |
