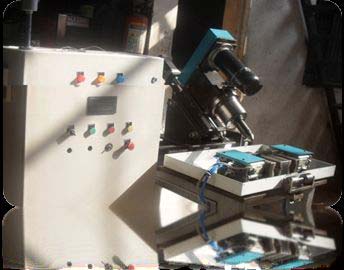

Automatic CNC Drilling Machine

Listing ID #1898400

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Another variety that we bring to our valued patrons is Automatic CNC Drilling Machine! Designed with perfection, our Machines offer reliable performance, have longevity and are acquirable in tailored....

View More Details

Send Enquiry

Product Details

Another variety that we bring to our valued patrons is Automatic CNC Drilling Machine! Designed with perfection, our Machines offer reliable performance, have longevity and are acquirable in tailored specifications. With us, high rigid & long stroke (upto 300 mm) drill units with compact size, variety of models available for wide range of machining requirements. All you need is to place orders with us, timely deliveries are our topmost priority.
More about Automatic CNC Drilling Machine : High quality servo motor for feed & precise ball screw designed eliminate feed rate fluctuation of feed speed by drilling forces; less burr generation for through hole drilling and longer tool life, High precision, high efficiency, less space and cost reduction that are Critical for the machining operation can be gained.
Features

High Quality Drilling : The fluctuation of feed speed is eliminated by the precision angular bearing supporting spindle and the high quality ball screw. As the result the generation of burr is reduced and the tool life is reduced.
High Rigid Precision Structure : Rigid structure the spindle ball screw and linear guide making the drill unit body rigid and strong enough to step and spot facing and burnishing drill.
High Efficient Deep Hole Drilling : Coolant centre through is available for Mechatric series for efficient deep hole drilling by oil hole drill tool.
High Flexibility : Spindle rotation is varied by attached inverter. Optimize speeds to adapt to different cutting requirements.
Adjustable Spindle Nose (Optional) : Please specify the adjustable spindle nose Neptune Systems supply as per requirement.
Multi job Loading Option/Multi axis operation : More then one job can be loaded for alternate operation /available as per requirement.
Easy Operation : 5.7" touch panel type color display makes it easy to make CNC programming and operate even for a beginner operator.
Data Input System/Other Attachments : Programming consol, Touch panel, computer monitoring software.

Technical Specifications

Particulars
Spindle accuracy	5 Micron
Drill Dia	0.5 mm to 26mm
Spindle motor	.700 Kw to 3.7 Kw Brushless DC
Drill speed (Max)	6000
Stroke	300
Feed motor	400 Kw to 2.7 Kw AC Servo
Linear Operation (Optional)	Available as per requirement
Rapid Approach	300mm/sec Max
Cutting Speed	16.7 mm/sec
X, Y, Z	Available as per requirement
Job Clamping / Holding	Hydraulic / Pneumatic
Job Loading / Unloading	Manual / Auto
