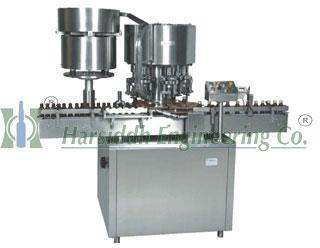

Contact SupplierThe Automatic Bottle Screw Capping Machine is suitable for Round Bottles. Specially Machine construction in Stainless Steel finish including machine M.S. frame structure with Stainless Steel Cladding/Enclosures.
The Machine is equipped with Orientation type Cap Feeder for continues feeding of Cap for online operation on any liquid or powder filling line. Machine suitable for various sizes of Bottles as well as Screw Cap with the help of change parts. Capping Machine is suitable for application in Pharmaceutical, Food, Pesticides, Chemical, Beverages, Liquor and other packaging industries having lower and higher production requirement with automatic online operation.
Model No. | DBSC-50 (Single Head) | DBSC-100 (Four Head) |
---|---|---|
Bottle Diameter / Height | Maximum 85 mm Maximum 200 mm | Maximum 85 mm Maximum 200 mm |
Bottles Type | Glass & Pet | Glass & Pet |
Cap size | 22, 25, 28, 32, 38mm | 22, 25, 28, 32, 38mm |
Power requirements | 1 HP 220V 1 Phase OR 415V 3 Phase, 50 Hz | 1.5 HP 220V 1 Phase OR 415V 3 Phase, 50 Hz |
Output | 40 to 50 per minute | 80 to 90 per minute |
Conveyor Height | 800 to 850 mm | 800 to 850 mm |
Dimension | 1300mm (L) X 800mm (W) X 1800mm (H) | 1500mm (L) X 800mm (W) X 1800mm (H) |
